ALLTOPELEC Best 16.5kWh LiFePO4 battery with 51.2V 324Ah capacity
The ALLTOPELEC 16.5kWh LiFePO4 Battery is a high-performance residential energy storage solution designed for solar power systems and hybrid inverter applications. Featuring a 51.2V 324Ah lithium iron phosphate battery pack, intelligent BMS protection, WiFi monitoring and parallel expansion capability, this wall-mounted ESS battery delivers safe, reliable and long-lasting energy storage.
16.5kWh High Capacity Storage
51.2V 324Ah LiFePO4 Battery
10000+ Cycle Life
WiFi & Bluetooth Monitoring
CAN / RS485 Communication
Parallel Support up to 20 Units
Compatible with Growatt, Deye, Victron, SMA。。。。。
Wall Mounted Design
Safe and Reliable, Extra-Long Lifespan, Smart Monitoring, Robust Adaptability
ALLTOPELEC Best 16.5kWh LiFePO4 Battery with 51.2V 324Ah Capacity
A high-performance residential energy storage solution designed for solar power systems and hybrid inverter applications. Featuring a 51.2V 324Ah LiFePO4 battery pack, intelligent BMS protection, WiFi monitoring, Bluetooth monitoring, and parallel expansion support, this wall-mounted ESS battery delivers safe, reliable, and long-lasting energy storage.

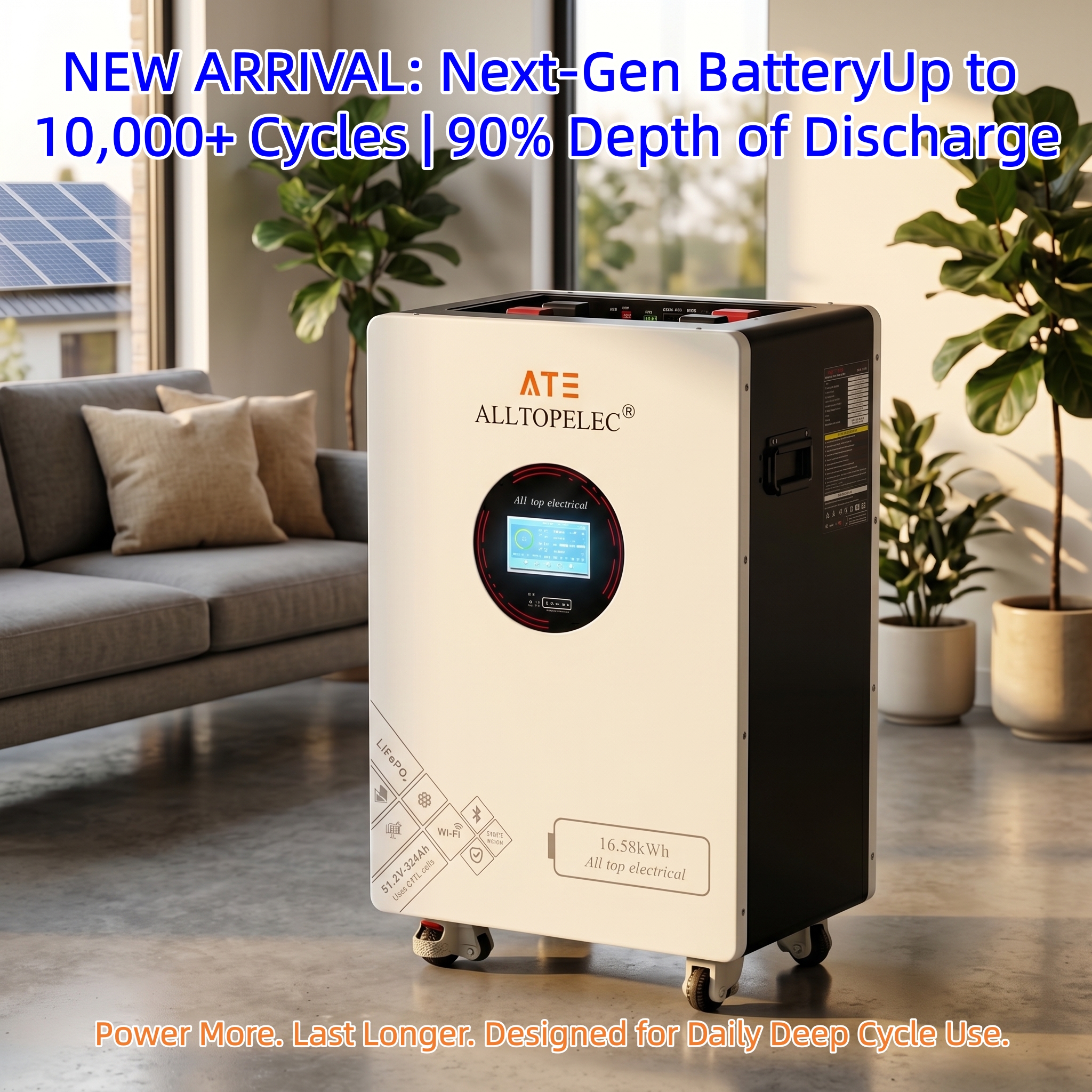

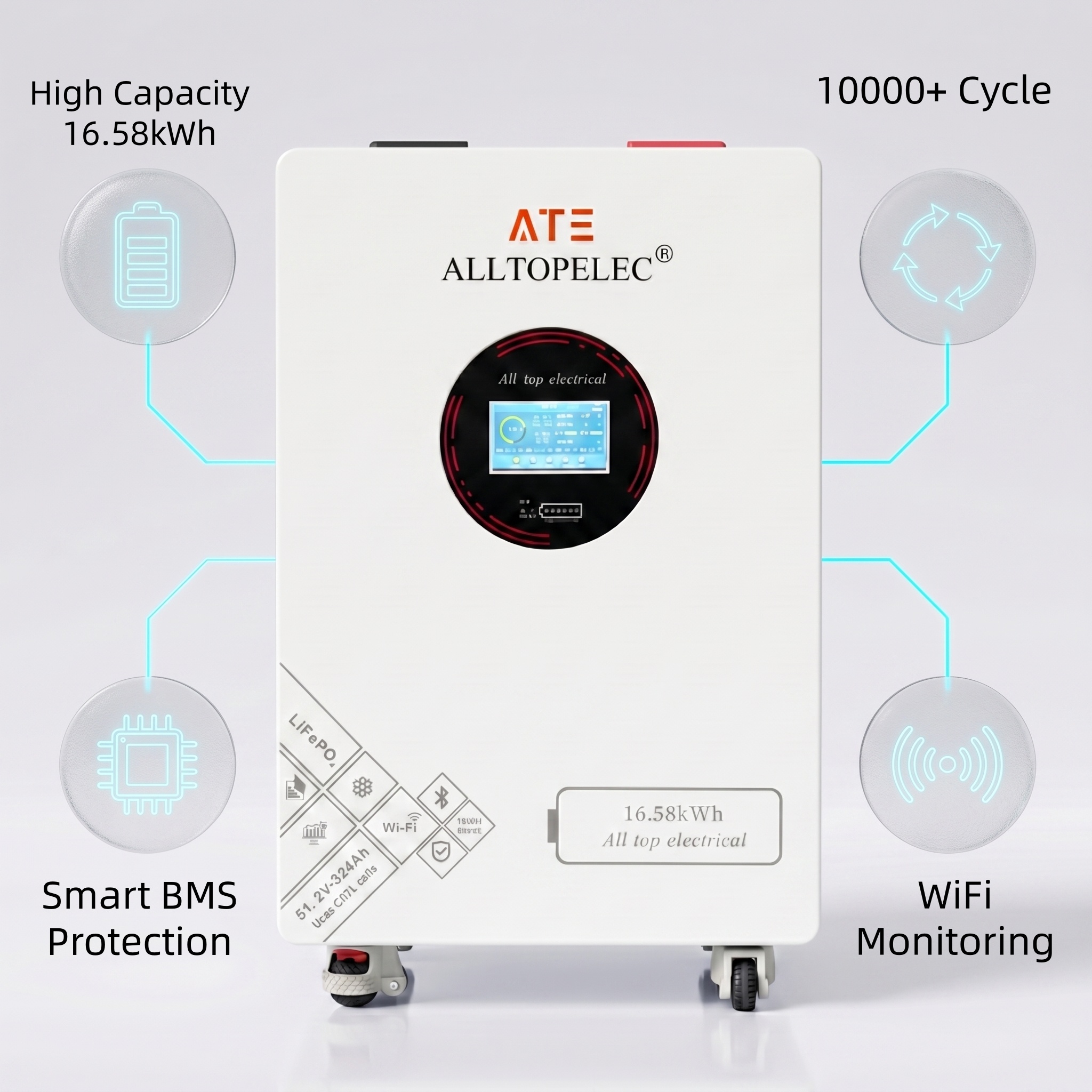

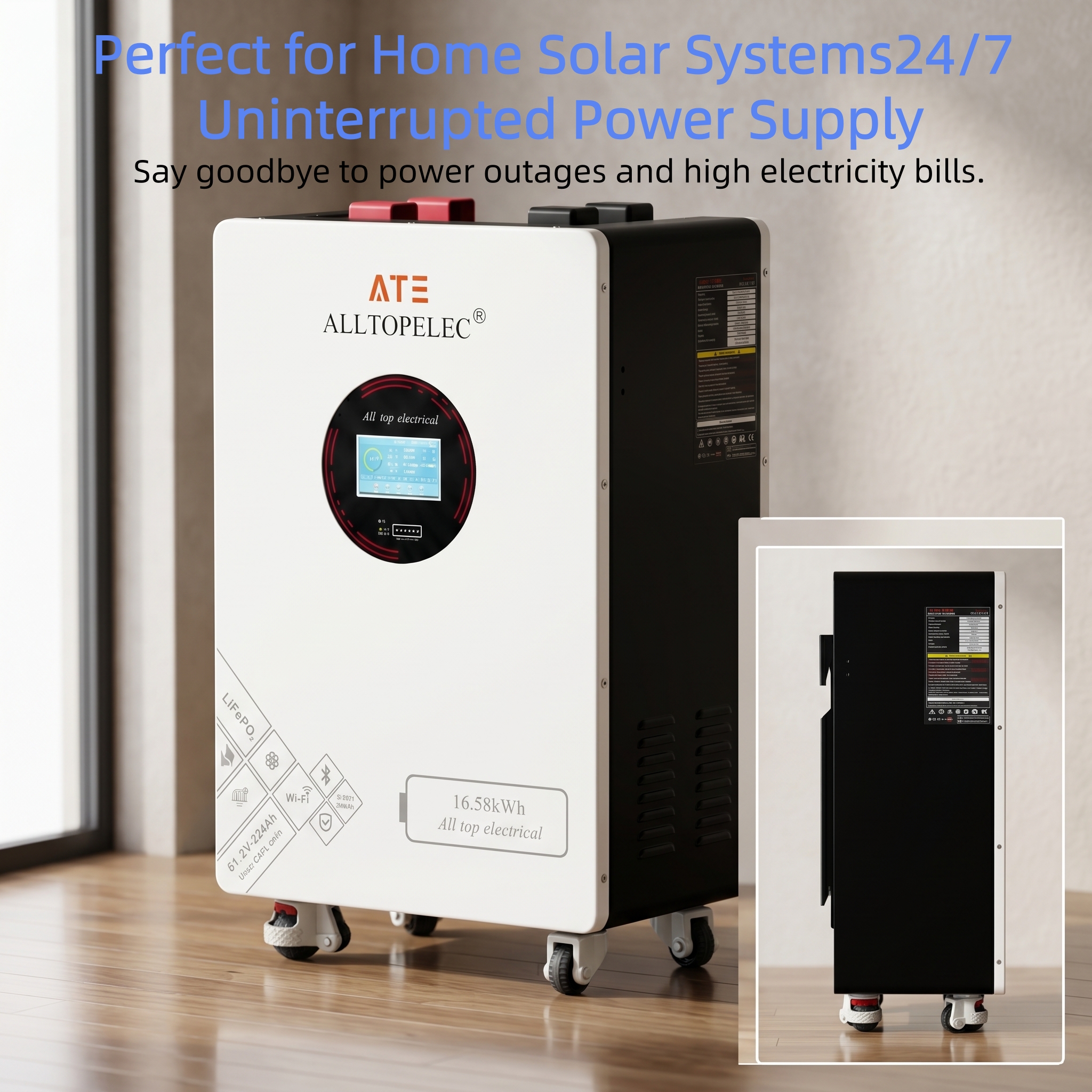

The ALLTOPELEC 16.5kWh LiFePO4 Battery is a wall-mounted residential energy storage battery designed for solar ESS, hybrid inverter systems, off-grid solar systems, home backup power, and commercial energy storage applications.
It uses LiFePO4 lithium iron phosphate chemistry with a 51.2V nominal voltage, 324Ah capacity, and 16.5kWh rated energy. With intelligent BMS protection, WiFi and Bluetooth APP monitoring, CAN / RS485 / RS232 communication, and support for up to 20 units in parallel, it is built for safe, flexible, and scalable energy storage.
16.5kWh High Capacity Storage
Provides 16.5kWh rated energy for residential solar storage, backup power, off-grid systems, and energy self-consumption.
51.2V 324Ah LiFePO4 Battery
Uses safe and stable lithium iron phosphate chemistry with 51.2V nominal voltage and 324Ah capacity.
10000+ Cycle Life
Designed for more than 10000 cycles at 80% depth of discharge, supporting long-term energy storage use.
Smart WiFi & Bluetooth Monitoring
Supports APP monitoring via WiFi and Bluetooth, allowing users to check SOC, voltage, current, temperature, alarms, and battery health.
CAN / RS485 / RS232 Communication
Supports common ESS communication protocols for better integration with solar and hybrid inverter systems.
Parallel Expansion up to 20 Units
Multiple batteries can be connected in parallel to expand total storage capacity for larger residential or commercial systems.
Compatible with Major Inverters
Designed for compatibility with inverter brands including Growatt, Deye, Victron, SMA, and related hybrid inverter systems.
Wall-Mounted Installation
The wall-mounted structure saves space and supports clean installation for residential and commercial energy storage applications.
Intelligent BMS Protection
Includes overcharge, over-discharge, over-current, short-circuit, high-temperature, low-temperature, voltage balancing, cell monitoring, and fault alarm protection.
Robust Environmental Adaptability
Supports wide operating temperature ranges, IP54 protection, and reliable performance in demanding environments.
| Category | Parameter | Specification |
|---|---|---|
| Product Information | Product Model | Top Power Wall 16.5kWh |
| Battery System | Battery Type | LiFePO4 |
| Battery System | Nominal Voltage | 51.2V |
| Battery System | Capacity | 324Ah |
| Battery System | Rated Energy | 16.5kWh |
| Battery System | Configuration | 16S1P |
| Electrical Performance | Working Voltage | 47V – 58.4V |
| Electrical Performance | Max Charge Current | 200A |
| Electrical Performance | Max Discharge Current | 200A |
| Electrical Performance | Recommended Charge Current | ≤150A |
| Lifecycle | Cycle Life | ＞10000 cycles @ 80% DoD |
| Communication | Communication Protocols | CAN / RS485 / RS232 |
| Expansion | Parallel Expansion | Up to 20 units |
| Installation | Installation Type | Wall mounted |
| Monitoring | Monitoring Method | WiFi + Bluetooth APP + PC |
| Operating Environment | Charge Temperature | 0℃ ~ 55℃ |
| Operating Environment | Discharge Temperature | -20℃ ~ 60℃ |
| Operating Environment | Storage Temperature | -20℃ ~ 30℃ |
| Operating Environment | Humidity | 5% – 95% |
| Physical Features | Weight | 120kg |
| Physical Features | Dimensions | 671 × 461 × 258mm |
Download the Product User Manual
Download the 16.5KWh LiFePO4 51.2V battery user manual for installation, operation, monitoring, safety guidance, and maintenance reference.
