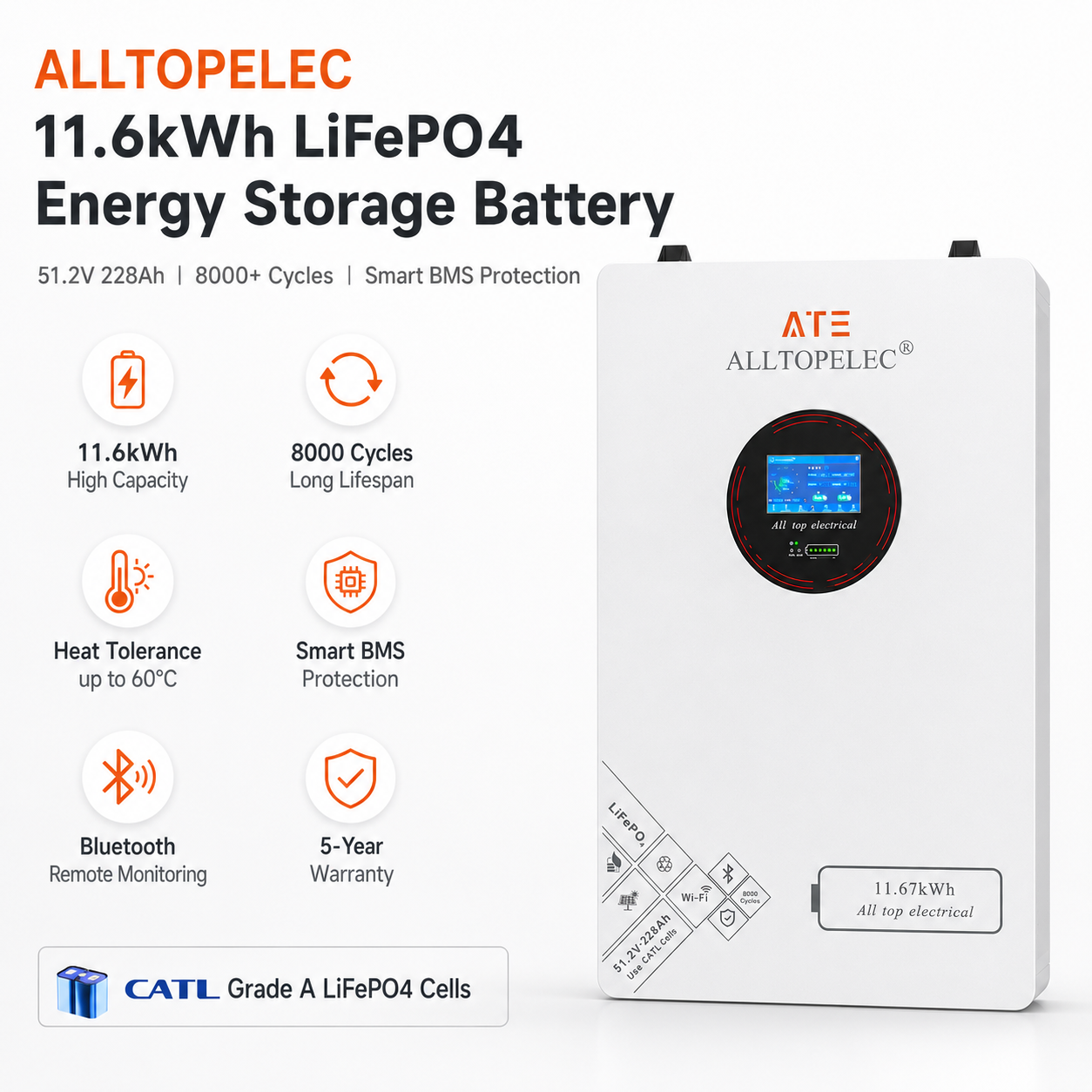

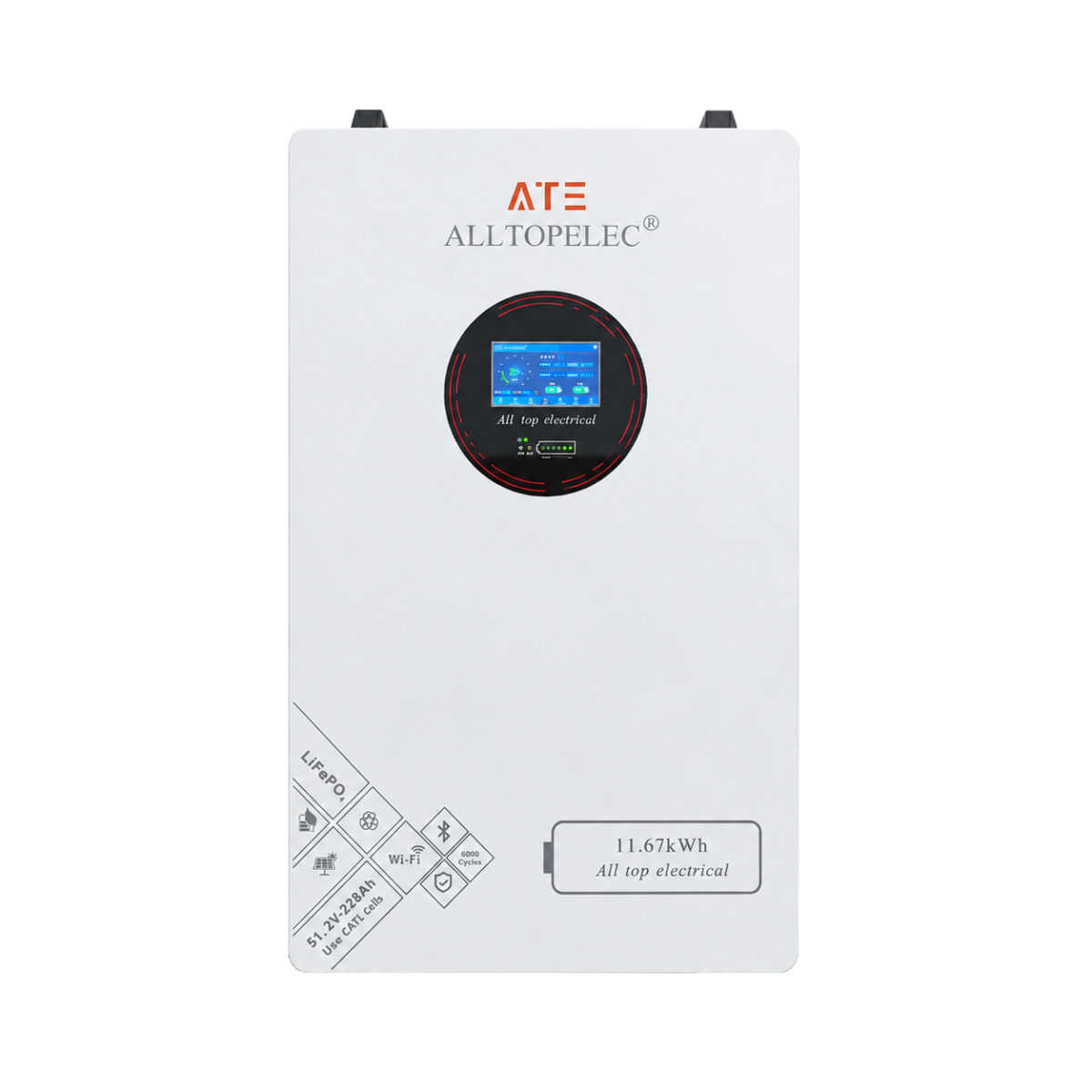

ALLTOPELEC 11.6KWh LiFePO4 energy storage battery
228Ah |
8000 cycles |
Smart BMS Protection |
Capacity |
Cycle Life |
BMS Type |
More Durable · Longer Lasting
Over 8000 cycles (90% DOD)

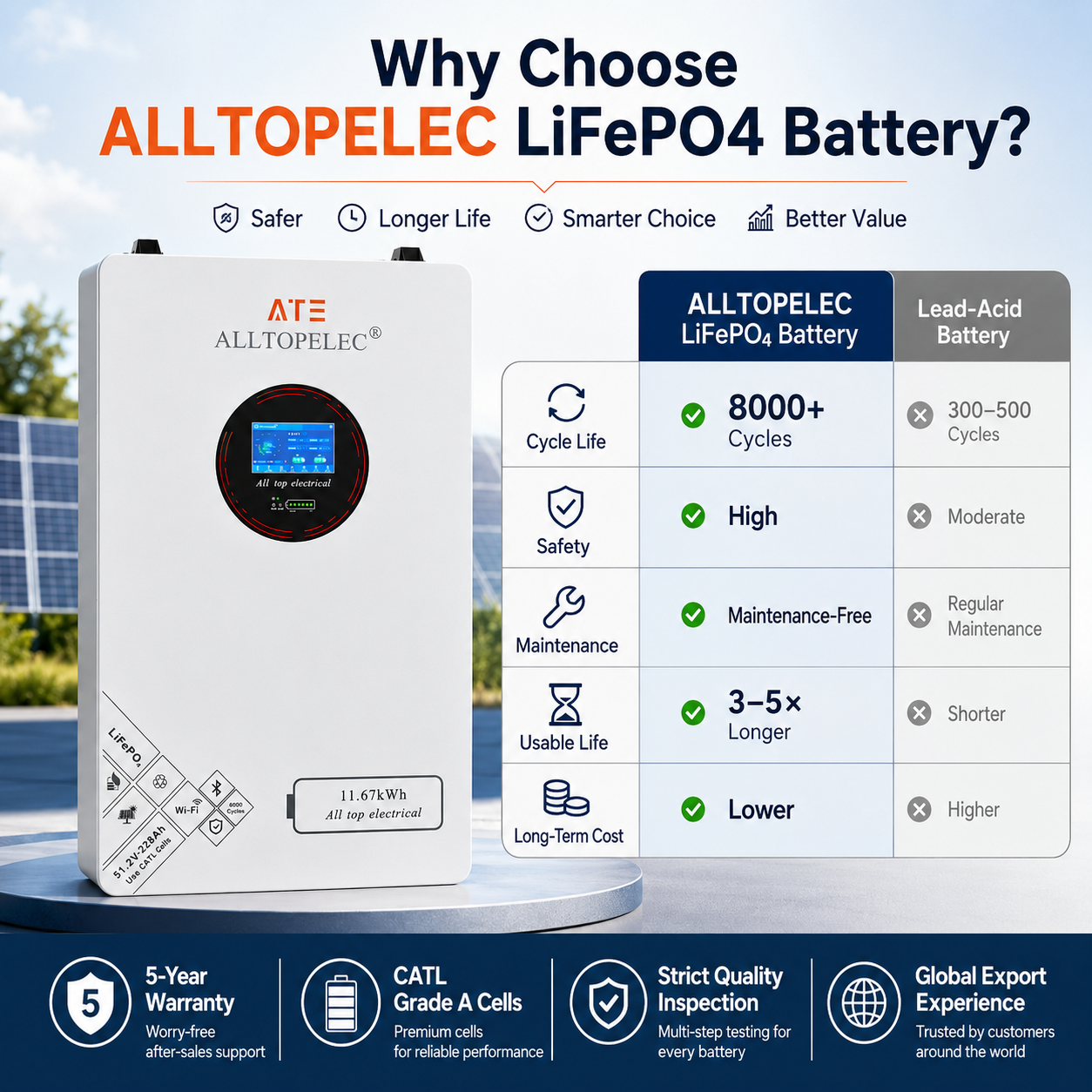

3–5 times longer lifespan than lead-acid batteries
Lower long-term usage cost

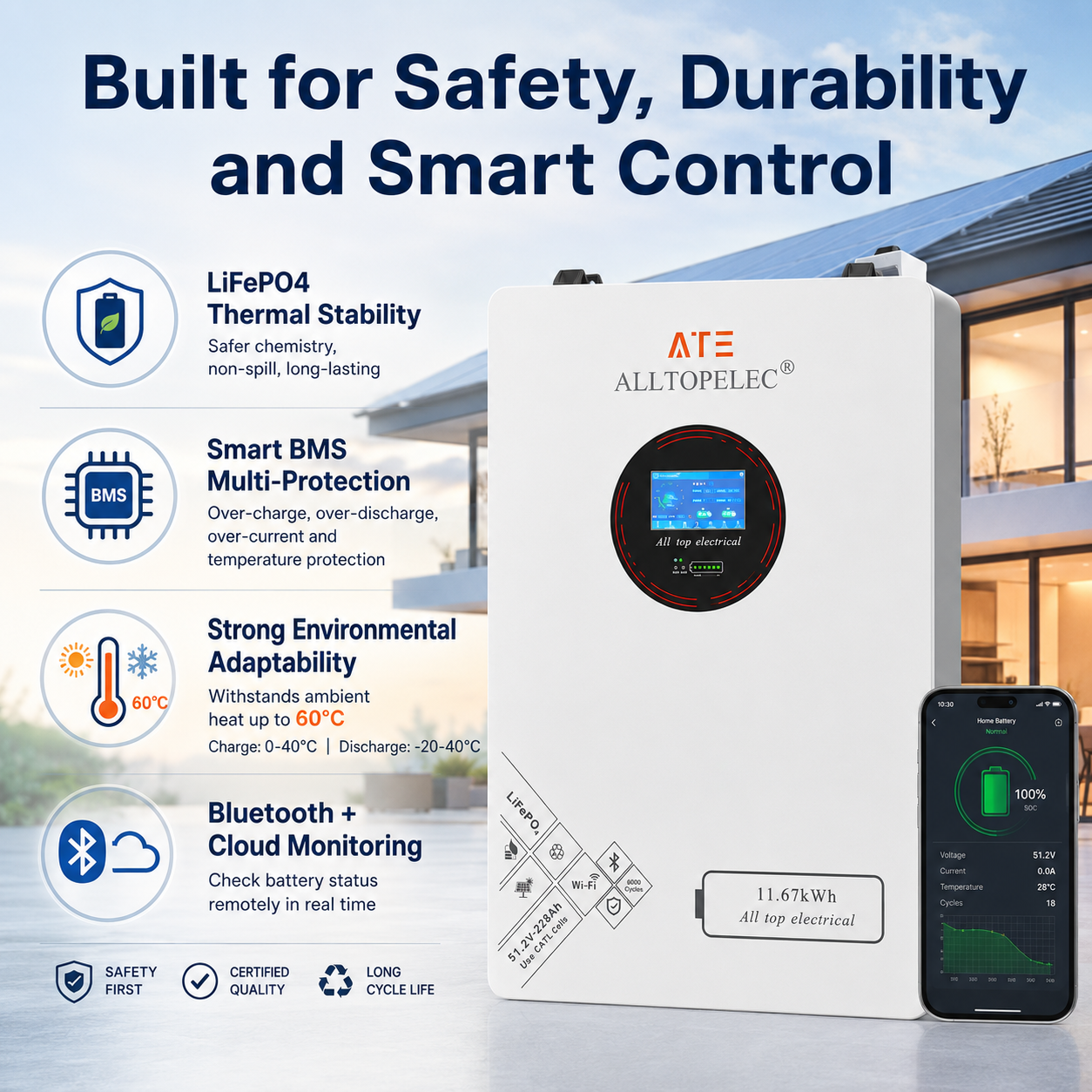

More Stable · Safer
Using LiFePO4 lithium iron phosphate cells
High thermal stability, non-flammable and non-explosive
Built-in BMS intelligent protection system
Stronger Environmental Adaptability
Withstands up to 60°C high-temperature environment
Discharge temperature: -20°C ~ 40°C
Suitable for outdoor / high temperature and high humidity environments (ideal for tropical regions)
Smarter · More Convenient

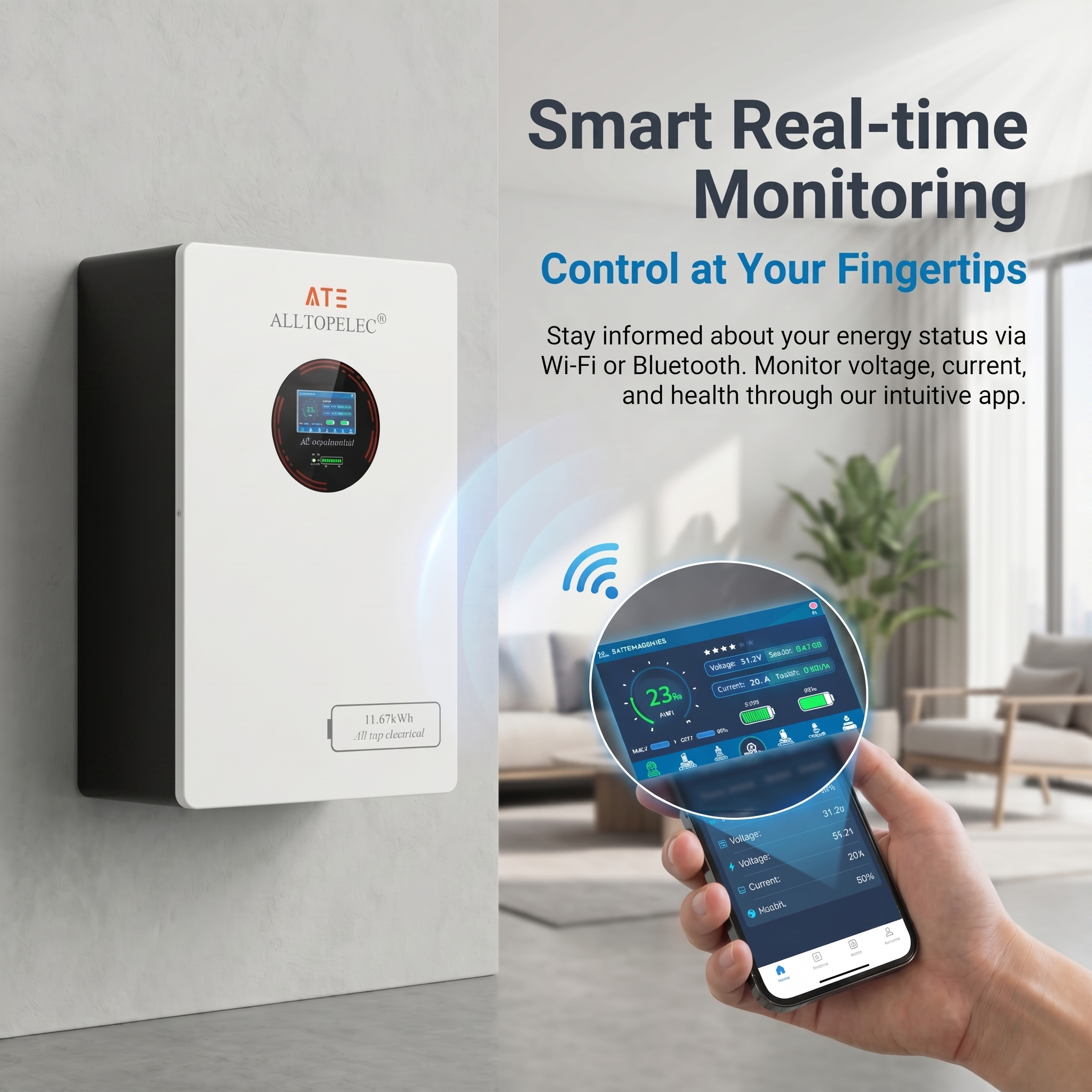

Supports Bluetooth connection + cloud platform monitoring
Real-time monitoring of battery level/status
Supports multiple inverter communication protocols (RS485/CAN)
Safe and Reliable, Extra-Long Lifespan, Smart Monitoring, Robust Adaptability
Featuring LFP material and smart BMS for top safety, with CATL EV-grade cells for 10,000+ cycles (5-year warranty).
Monitor and manage via Bluetooth/cloud/APP. Withstands 60℃, discharges from -20℃ to 40℃, IP54 rated—built for tough environments.
ALLTOPELEC 11.6KWh LiFePO4 Energy Storage Battery
A safe, efficient, and intelligent 11.6KWh LiFePO4 energy storage battery with 51.2V nominal voltage, 228Ah capacity, Smart BMS protection, Bluetooth / cloud / APP monitoring, IP54 protection, and multiple communication options for residential energy storage, off-grid solar systems, and backup power applications.
The ALLTOPELEC 11.6KWh LiFePO4 Energy Storage Battery is designed for reliable residential and off-grid energy storage. With a 51.2V nominal voltage, 228Ah capacity, and 11.6KWh energy, it provides stable backup power for household energy storage systems, solar power systems, and emergency power needs.
Built with LiFePO4 battery chemistry and Smart BMS protection, this battery supports long service life, safe operation, and intelligent monitoring. Bluetooth connection, cloud platform monitoring, and mobile APP monitoring make it easier to track battery status, while RS485 / CAN / RS232 / Bluetooth communication helps support system integration.
11.6KWh Energy Storage
Provides 11.6KWh energy with 51.2V nominal voltage and 228Ah capacity for residential and solar backup power systems.
LiFePO4 Battery Chemistry
Uses lithium iron phosphate chemistry for improved safety, thermal stability, and long-term energy storage performance.
Smart BMS Protection
Built-in Smart BMS helps protect the battery during charging, discharging, and daily operation.
Long Cycle Life
Designed for over 8000 cycles at 90% DOD, supporting long-term use and reduced replacement frequency.
CATL EV-Grade Cells
Product information highlights CATL EV-grade cells for high reliability and stable performance.
Bluetooth & Cloud Monitoring
Supports Bluetooth connection, cloud platform monitoring, and APP monitoring for easier battery management.

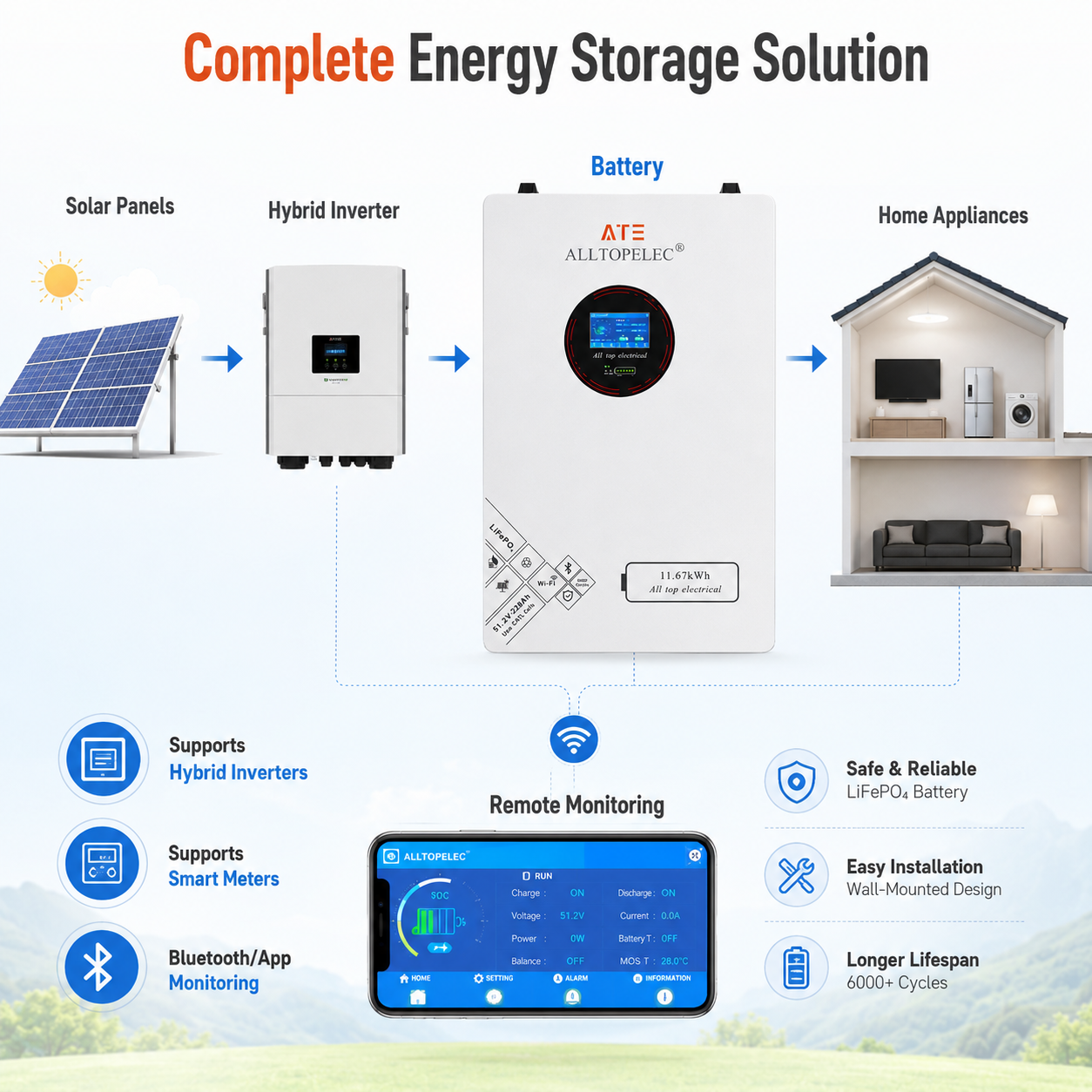

Multiple Communication Options
Supports RS485, CAN, RS232, and Bluetooth communication for inverter and energy storage system integration.
IP54 Protection Level
IP54-rated protection helps improve durability for household, solar, and backup power environments.
200A Max Discharge Current
Supports up to 200A maximum discharge current for stronger power output capability.

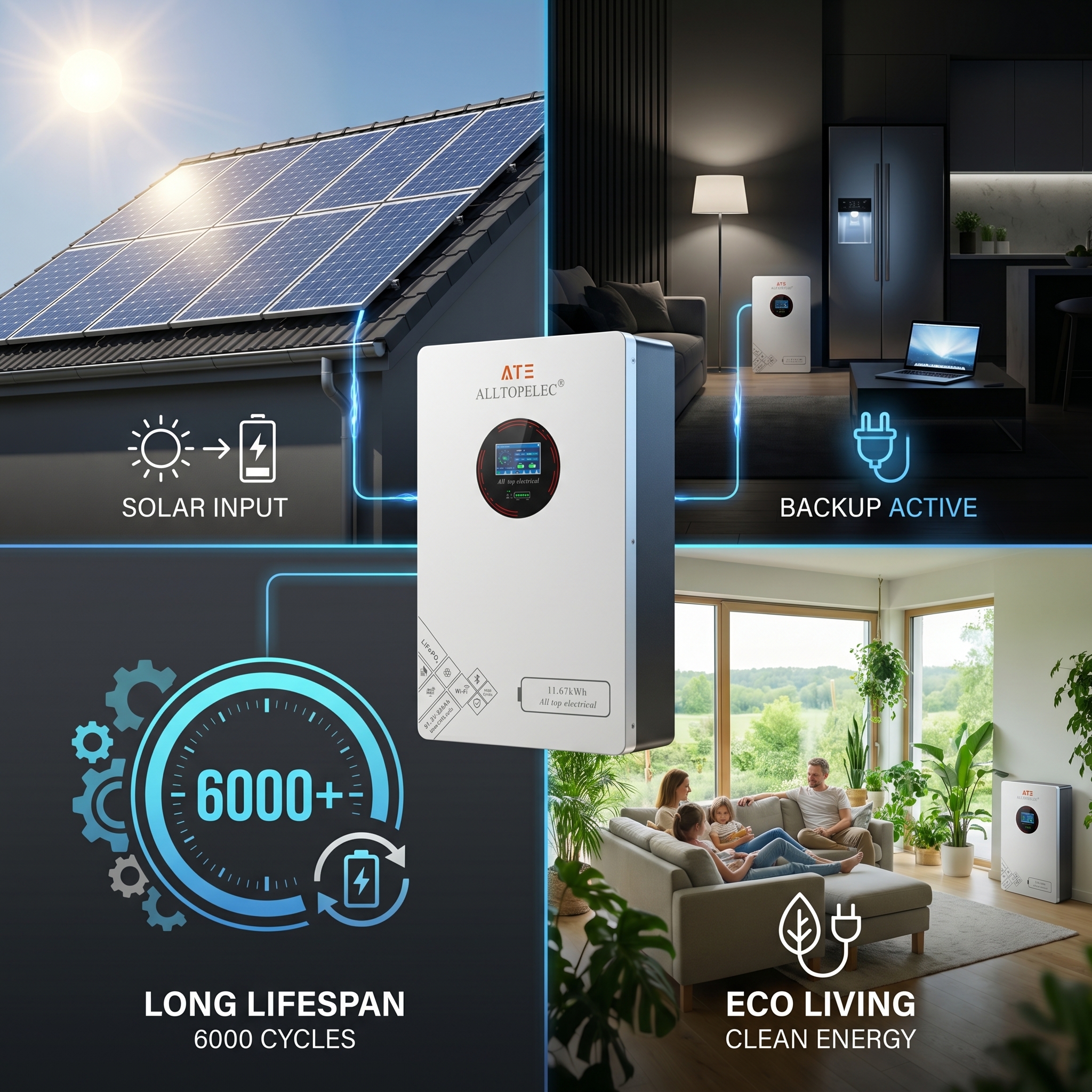

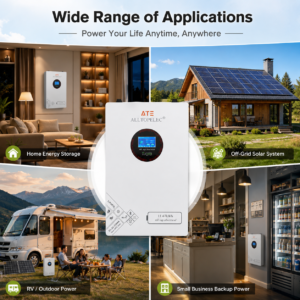

Residential Energy Storage Ready
Suitable for residential energy storage systems, off-grid solar systems, and household backup power applications.
Compact Vertical Design
The 226 × 550 × 700mm body is designed for practical installation and space-conscious energy storage layouts.
5-Year Warranty
The product information highlights a 5-year warranty for trusted long-term use.

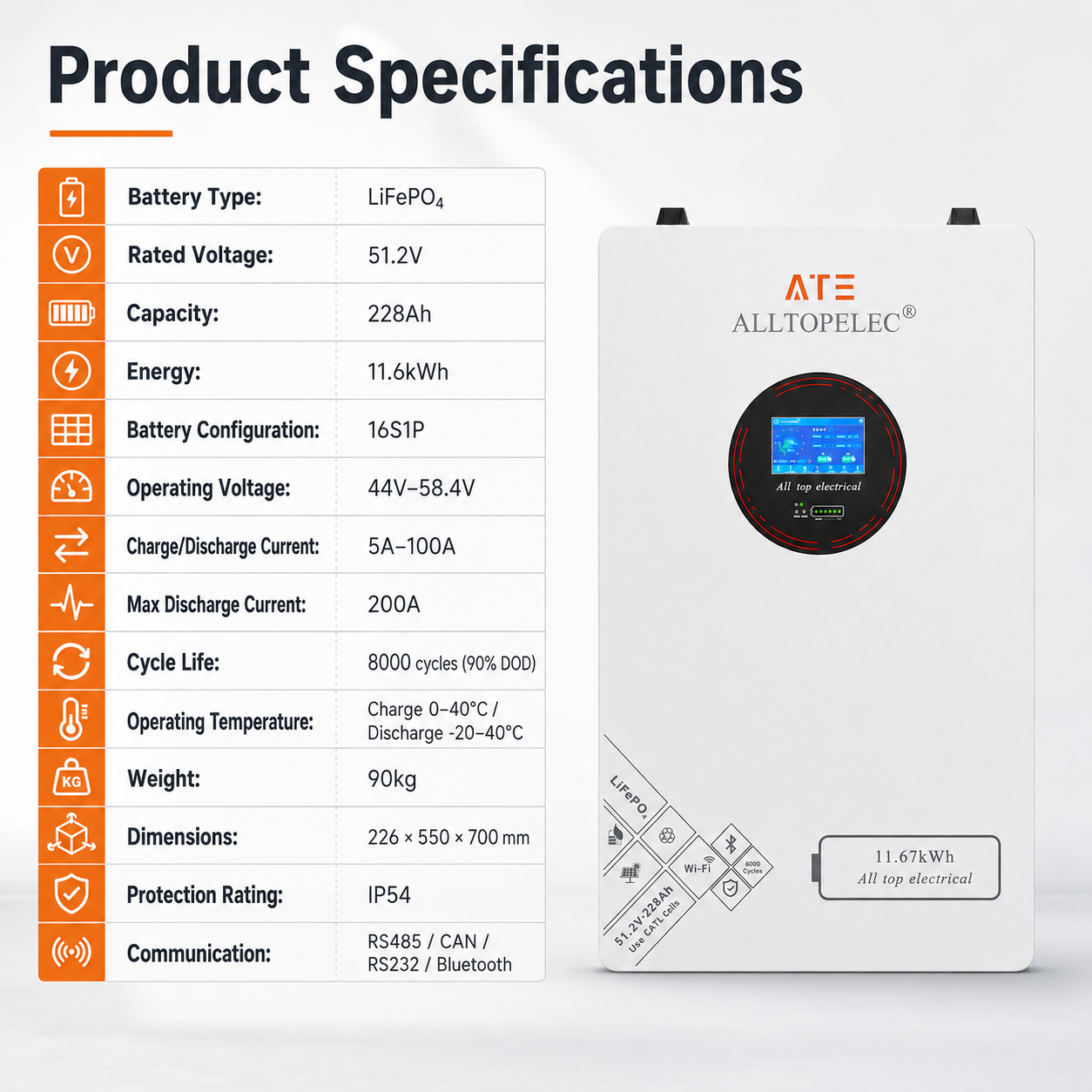

| Category | Parameter | Specification |
|---|---|---|
| Battery System | Battery Type | LiFePO4 |
| Battery System | Nominal Voltage | 51.2V |
| Battery System | Capacity | 228Ah |
| Battery System | Energy | 11.6KWh |
| Battery System | Battery Configuration | 16S1P |
| Electrical Performance | Operating Voltage | 44V–58.4V |
| Electrical Performance | Charge / Discharge Current | 5A–100A |
| Electrical Performance | Max Discharge Current | 200A |
| Cycle Life | Cycle Life | Over 8000 cycles at 90% DOD |
| Operating Environment | Operating Temperature | Charge: 0~40°C / Discharge: -20~40°C |
| Physical Features | Weight | 90KG |
| Physical Features | Dimensions | 226 × 550 × 700mm |
| Protection | Protection Level | IP54 |
| Communication | Communication | RS485 / CAN / RS232 / Bluetooth |
| Monitoring | Remote Monitoring | Bluetooth connection, cloud platform monitoring, and mobile APP monitoring |
| Applications | Suitable Uses | Residential energy storage systems, off-grid solar systems, and backup power applications |
| Warranty | Warranty Period | 5 years |
Download the Product User Manual
Download the LiFePO4 51.2V battery user manual for installation guidance, system connection, battery operation, monitoring setup, safety notes, and maintenance reference.
