ATE ALLTOPELEC 20.48KWh LiFePO4 energy storage battery
400Ah |
8000 cycles |
Smart BMS Protection |
Capacity |
Cycle Life |
BMS Type |
More Durable · Longer Lifespan
Over 8000 cycles lifespan (90% DOD)
3–5 times longer lifespan than lead-acid batteries
Lower long-term usage cost
More Stable · Safer
Using CATL automotive-grade LiFePO4 (Lithium Iron Phosphate) cells
High thermal stability, non-flammable and non-explosive
Built-in BMS intelligent protection system
Stronger Environmental Adaptability
Withstands up to 60°C high-temperature environments
Discharge temperature: -20°C ~ 40°C

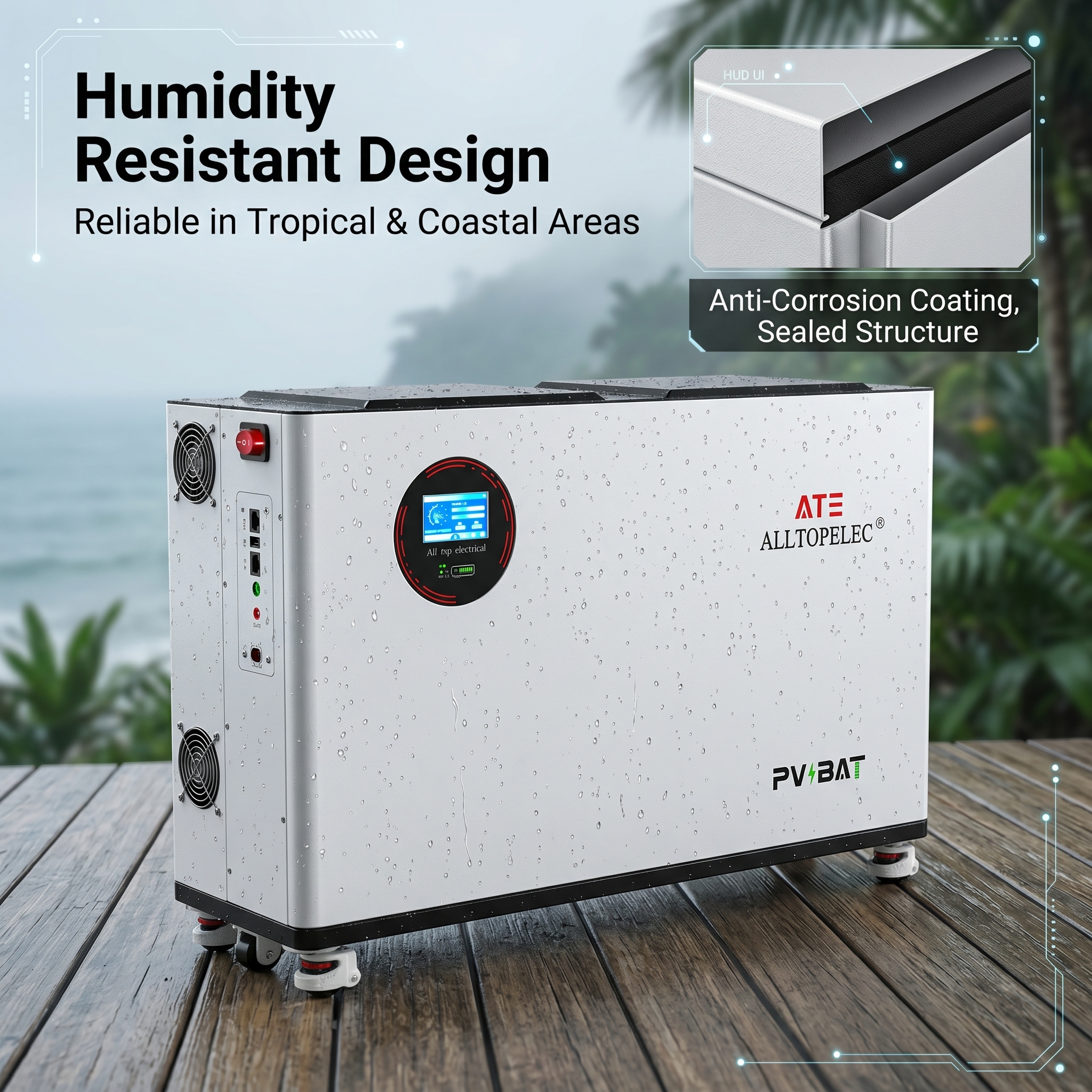

Suitable for high temperature & high humidity regions (ideal for tropical climates)
🔌 Smarter · More Convenient
Supports Bluetooth connection + cloud platform monitoring
Real-time battery status and system monitoring
Compatible with multiple inverter communication protocols (RS485 / CAN)

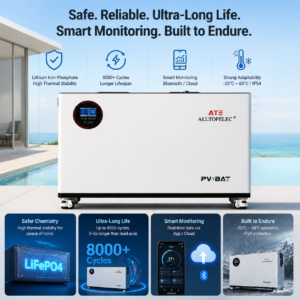

Safe and Reliable, Extra-Long Lifespan, Smart Monitoring, Robust Adaptability

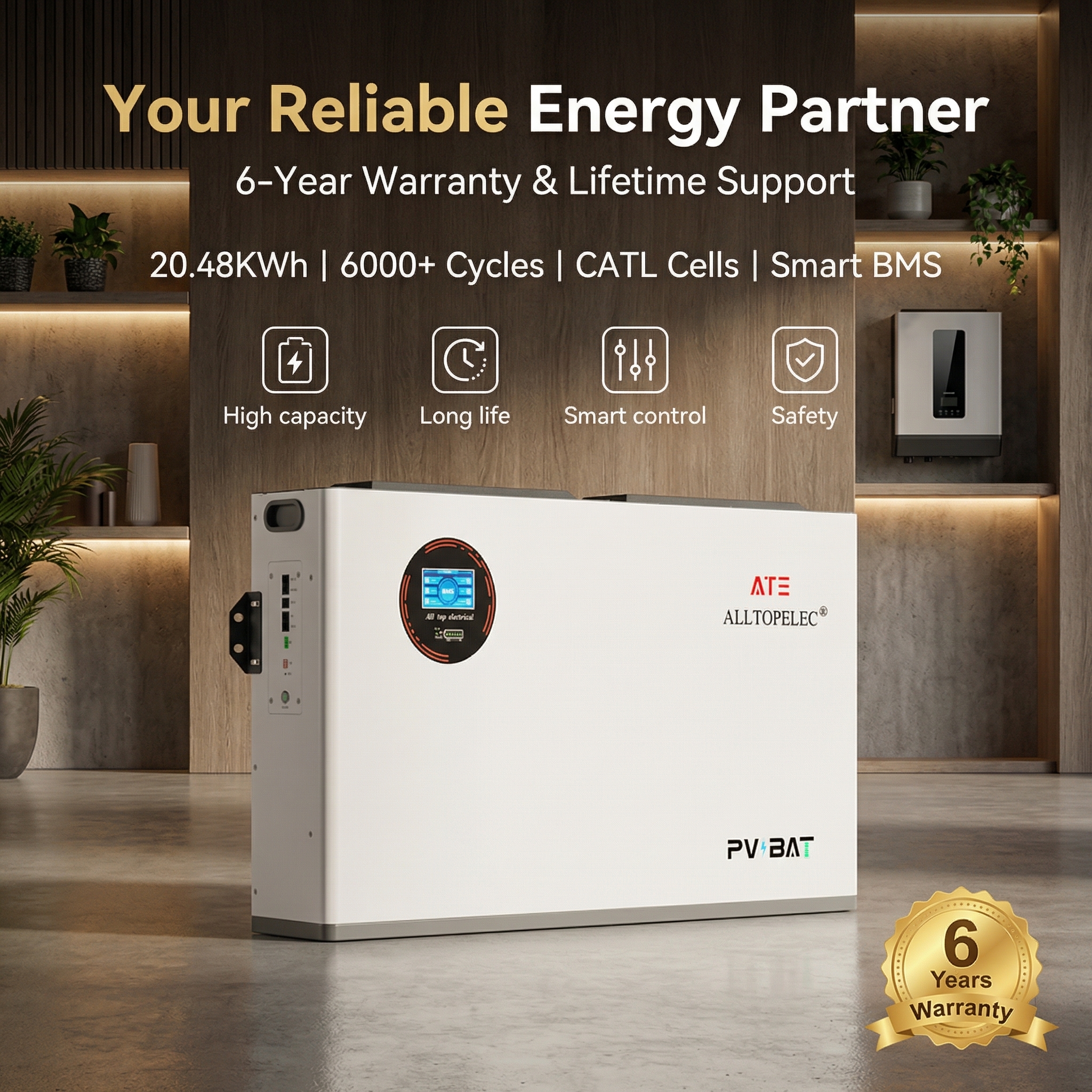

ATE ALLTOPELEC 20.48KWh LiFePO4 Energy Storage Battery
A durable, safe, and intelligent 20.48KWh LiFePO4 energy storage battery with 51.2V nominal voltage, 400Ah capacity, CATL automotive-grade cells, Smart BMS protection, Bluetooth and cloud monitoring, and flexible fixed or mobile installation options for home, off-grid solar, RV, outdoor, and small commercial backup power systems.
The ATE ALLTOPELEC 20.48KWh LiFePO4 Energy Storage Battery is designed for reliable long-term energy storage in residential, off-grid, RV, outdoor, and small commercial backup power systems. With a 51.2V nominal voltage, 400Ah capacity, and 20.48KWh energy output, it provides strong backup power for users who want to reduce power outage anxiety.
Built with CATL automotive-grade LiFePO4 battery cells, the battery offers over 8000 cycles at 90% depth of discharge. Its intelligent BMS protection system, RS485 / CAN / RS232 / Bluetooth communication, Bluetooth connection, cloud platform monitoring, IP54 protection level, and flexible fixed or mobile installation design make it suitable for demanding energy storage applications.

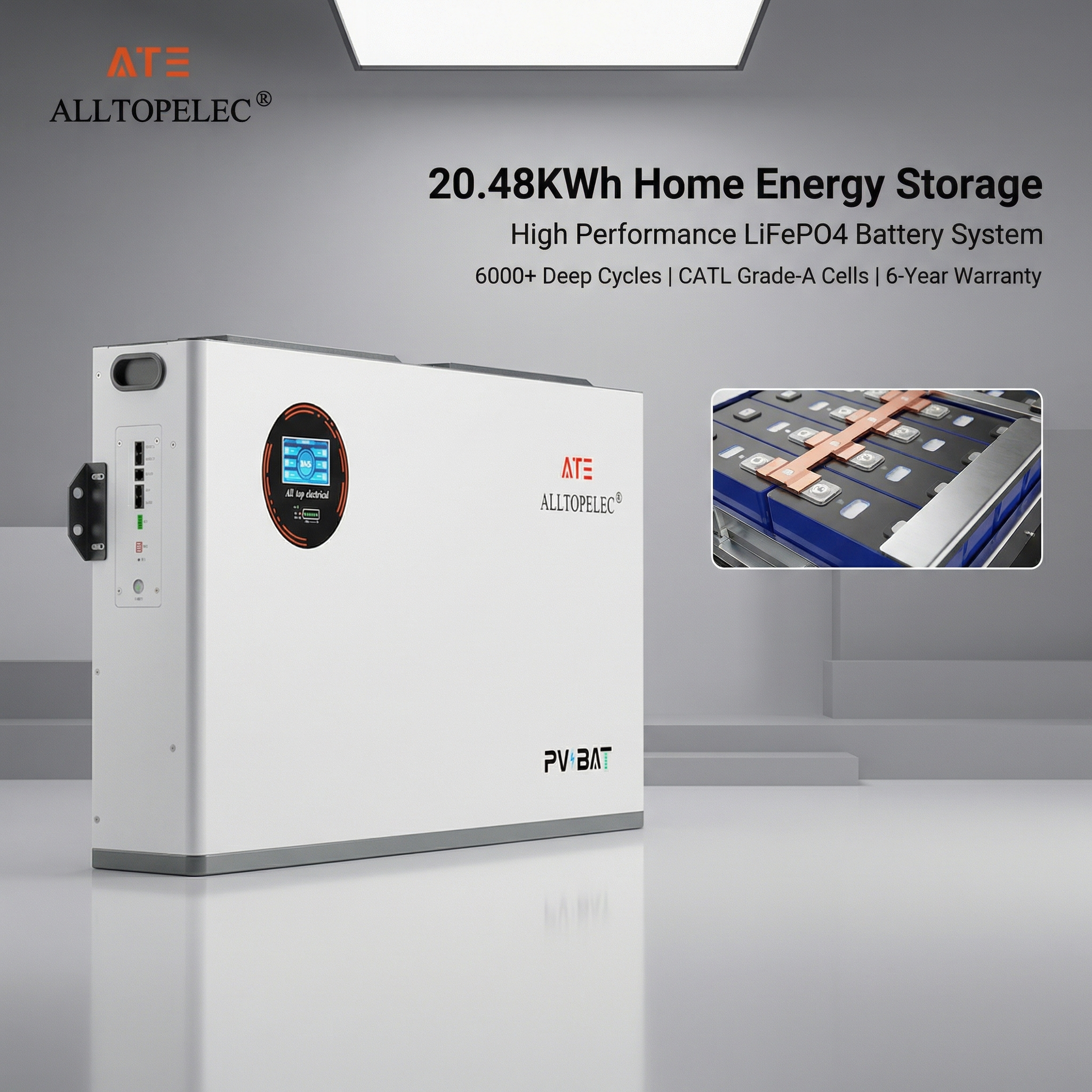

20.48KWh High-Capacity Storage
Provides 20.48KWh energy with 51.2V nominal voltage and 400Ah capacity for home energy storage and backup power.

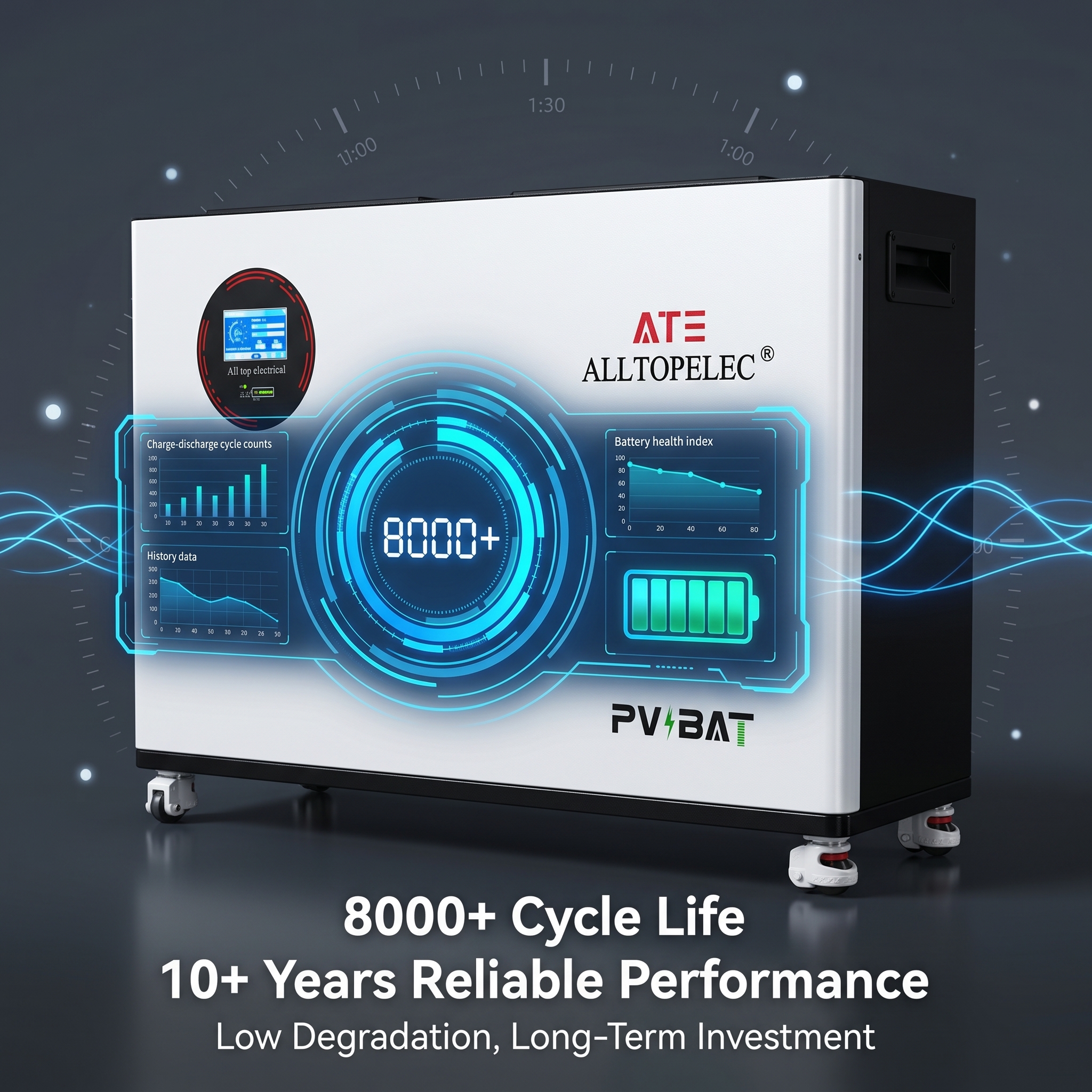

8000+ Cycle Lifespan
Designed for more than 8000 cycles at 90% depth of discharge, offering a much longer lifespan than lead-acid batteries.

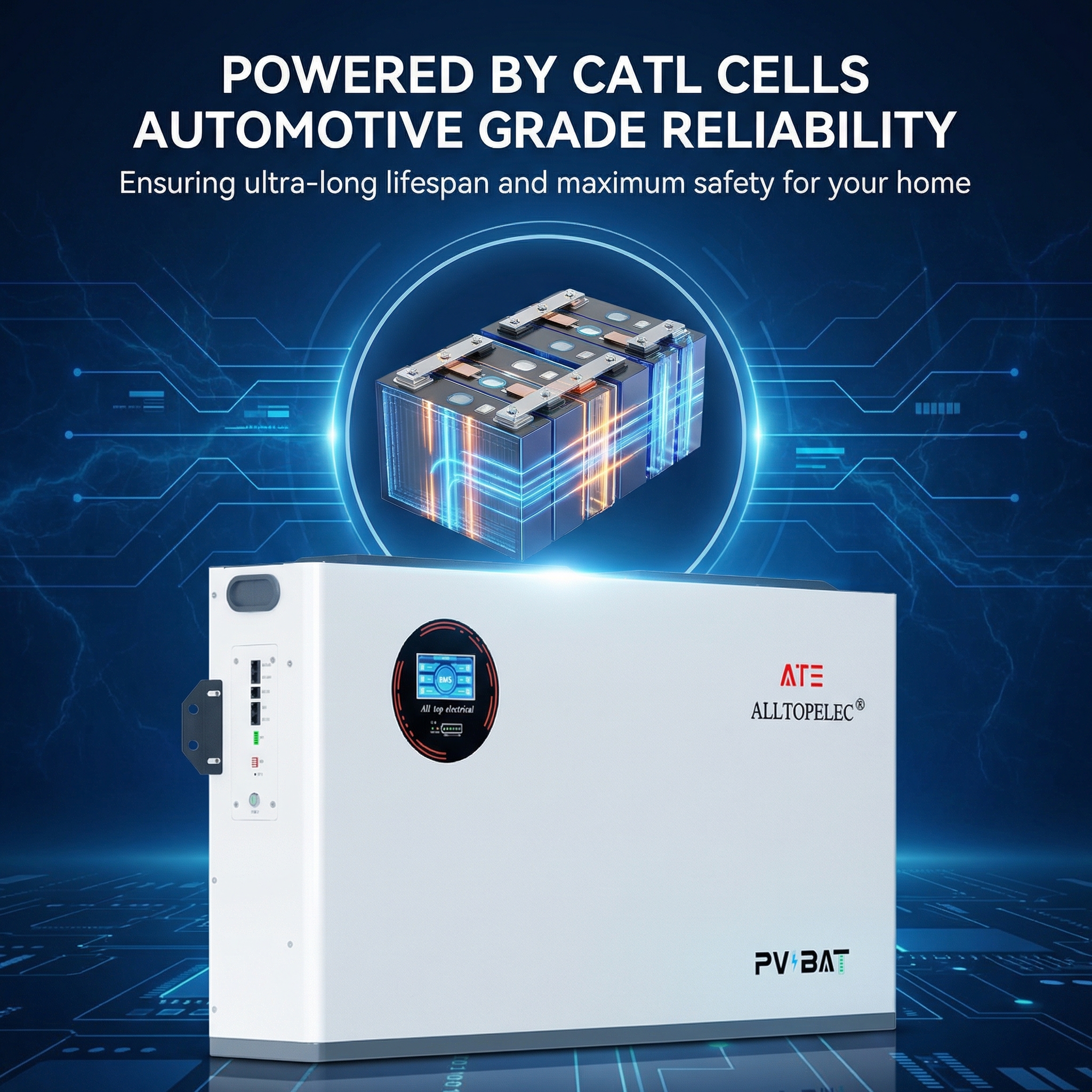

CATL Automotive-Grade LiFePO4 Cells
Uses CATL EV-grade lithium iron phosphate cells for high thermal stability, safety, and long-term reliability.
Smart BMS Protection
Built-in intelligent BMS helps protect the battery system and supports safe, stable operation.

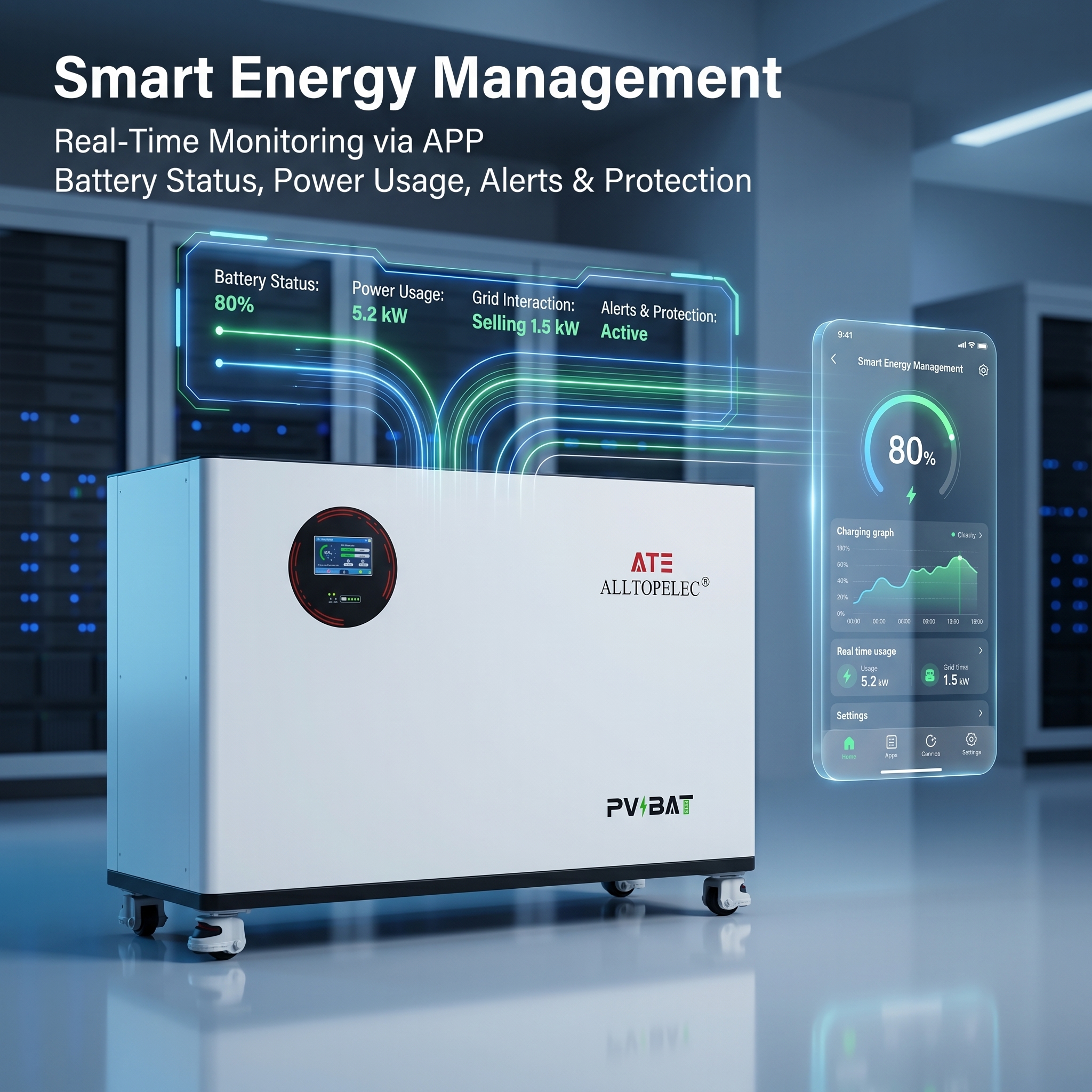

Bluetooth & Cloud Monitoring
Supports Bluetooth connection and cloud platform monitoring for real-time battery status and system monitoring.
Multiple Communication Protocols
Supports RS485, CAN, RS232, and Bluetooth communication for integration with energy storage and inverter systems.

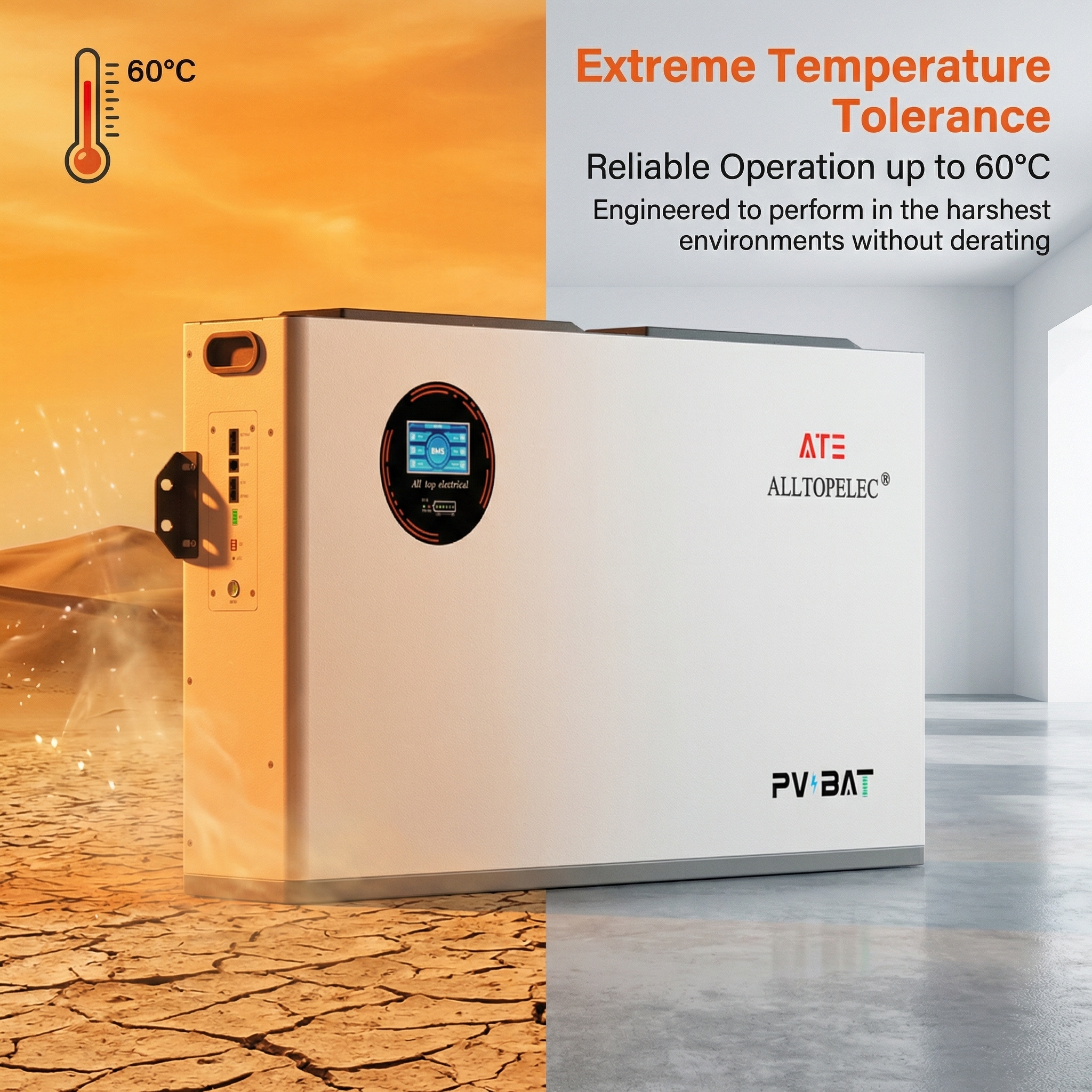

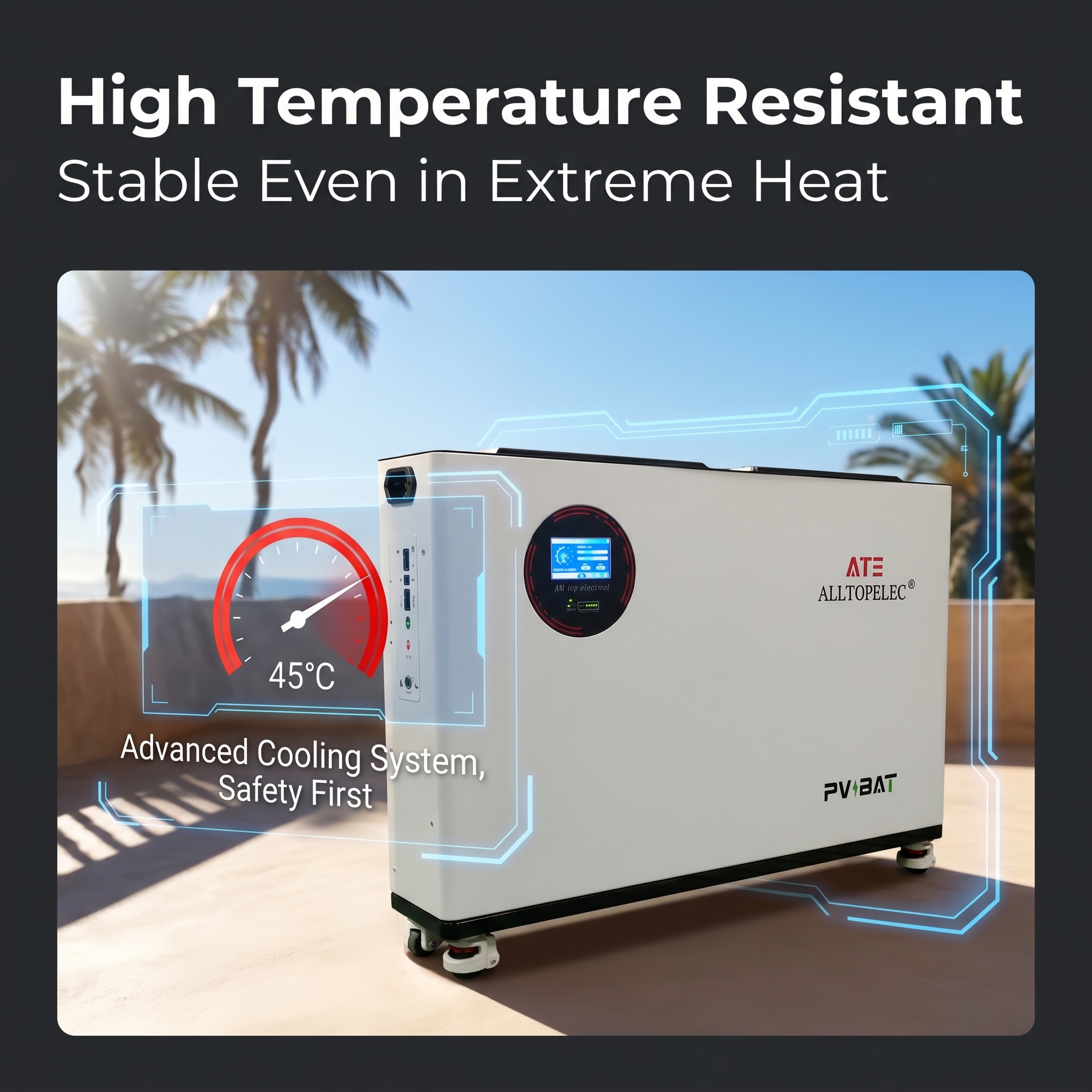

Strong Environmental Adaptability
Withstands high-temperature environments up to 60°C and supports discharge operation from -20°C to 40°C.
IP54 Protection Level
IP54-rated protection helps the battery perform reliably in challenging residential and commercial environments.

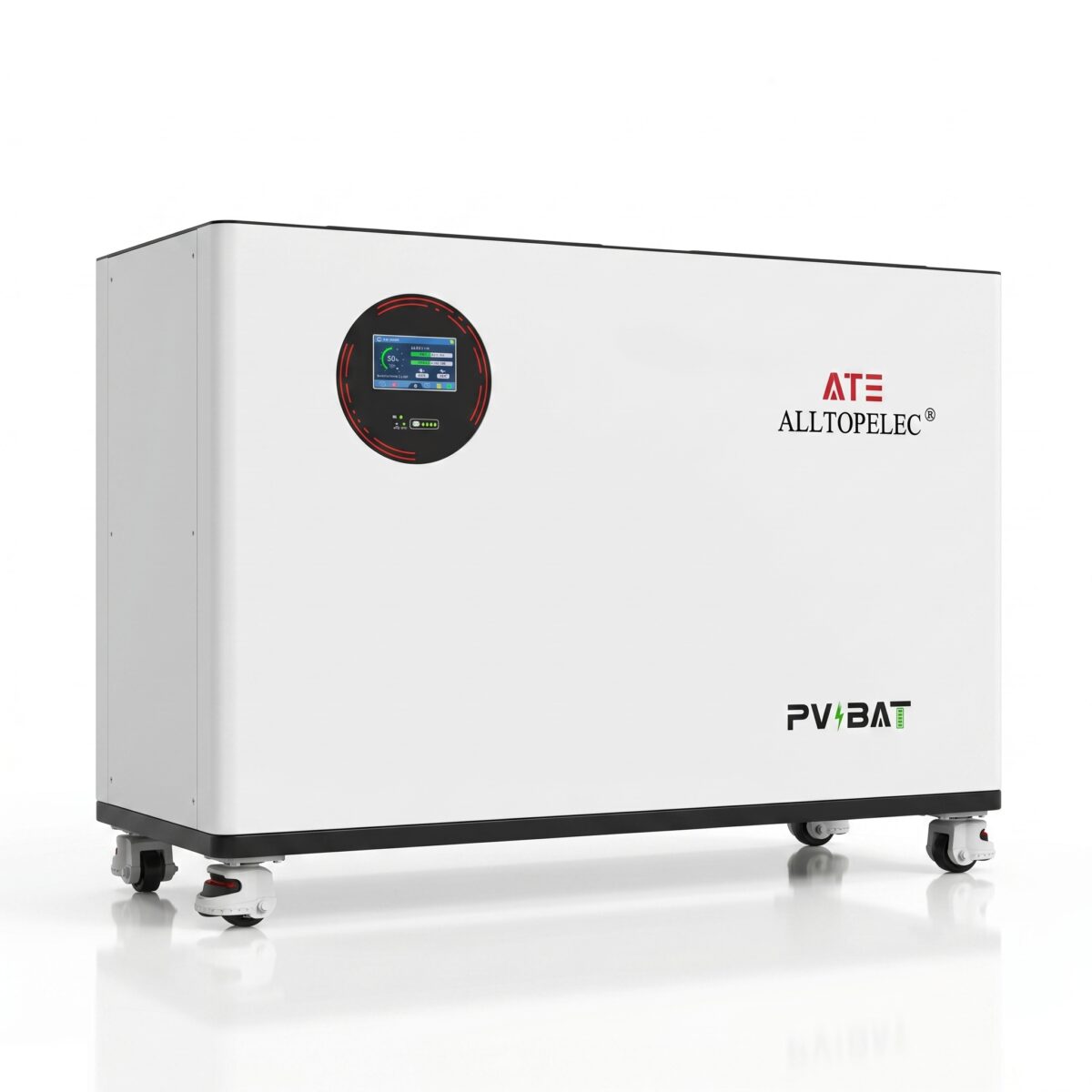

Flexible Installation Design

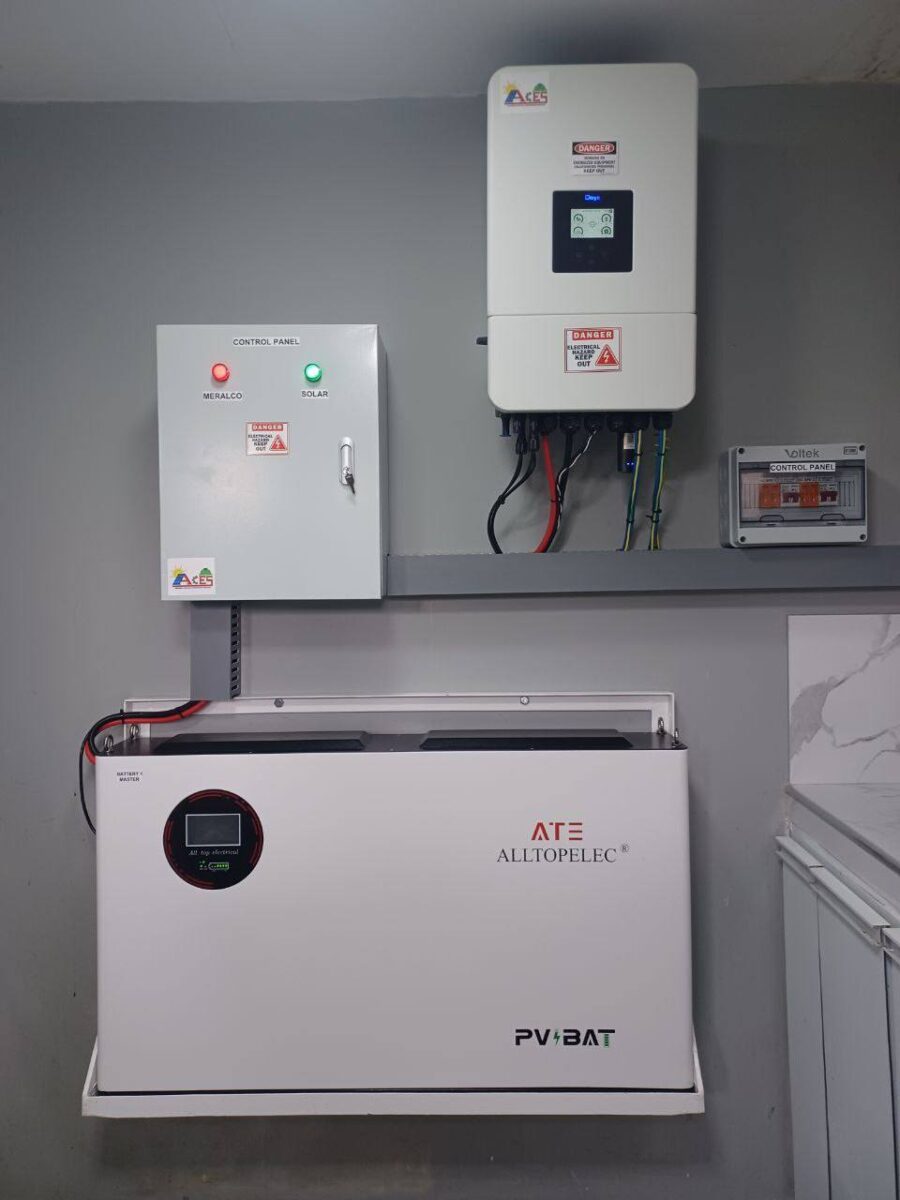

Supports fixed wall or floor mounting for long-term use and mobile use with built-in casters for flexible power supply.

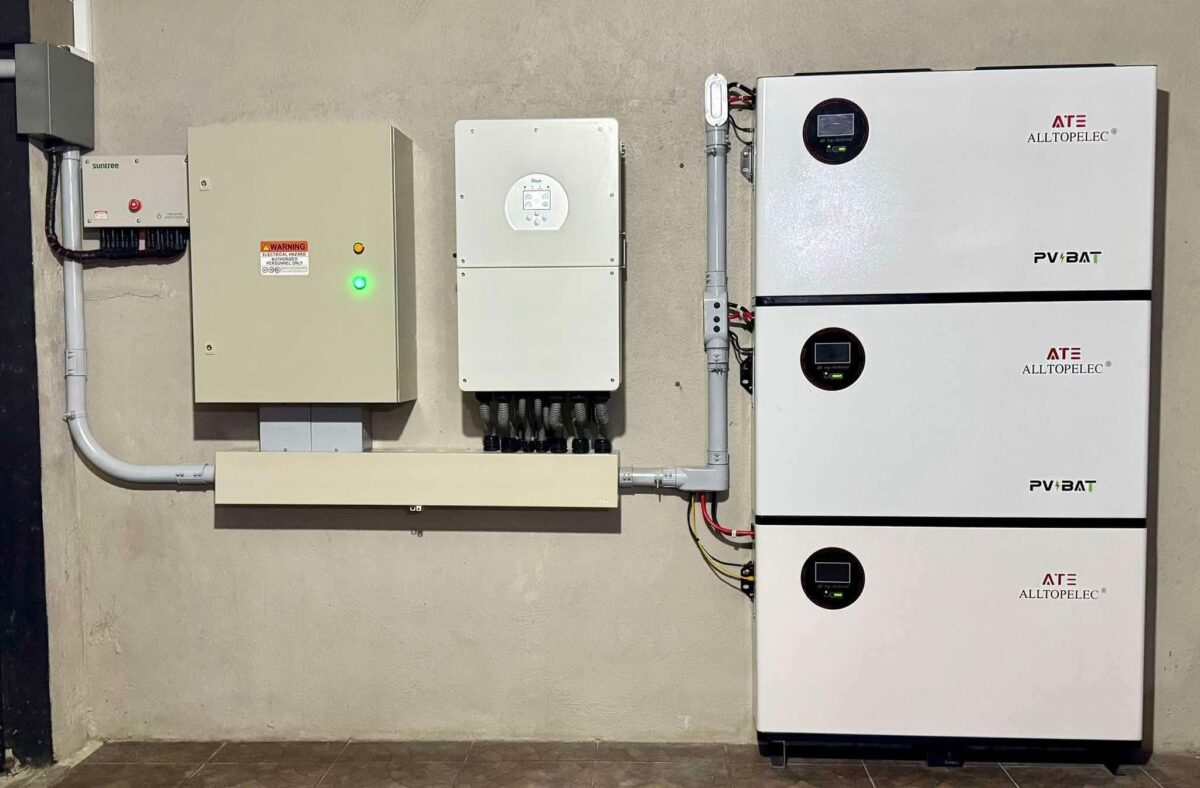

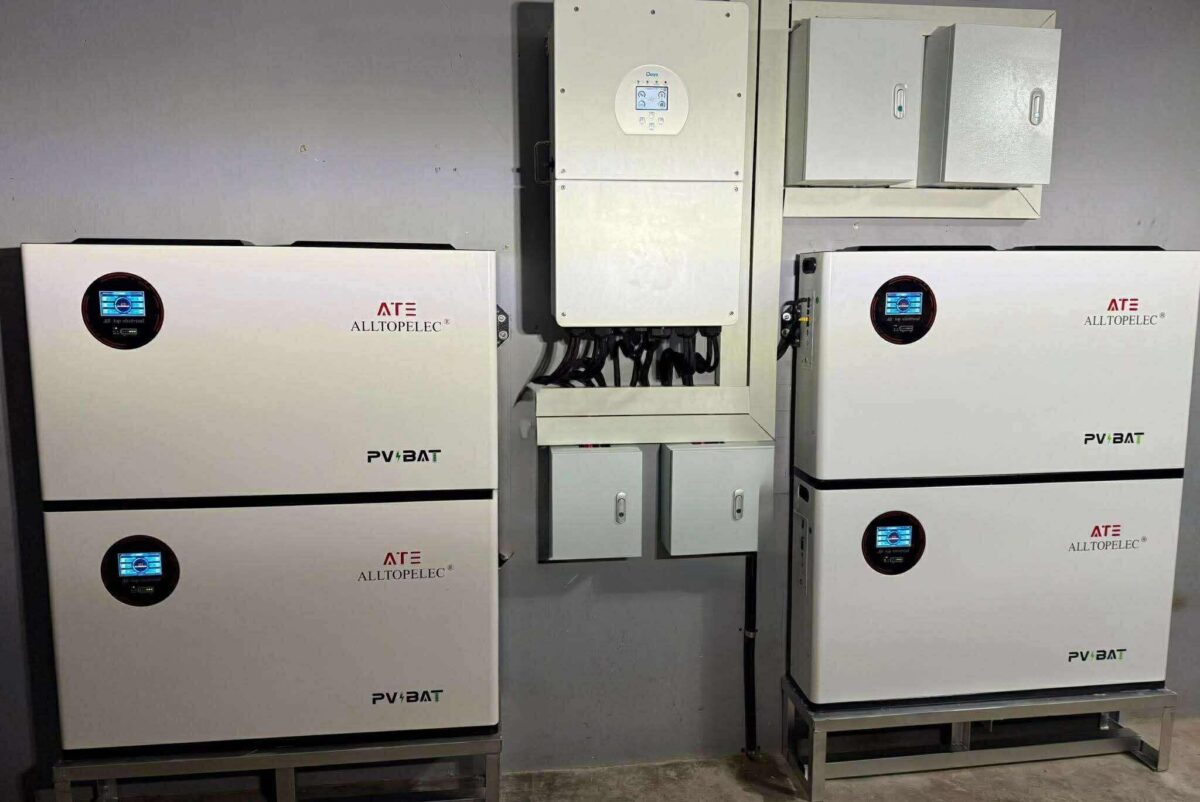

Hybrid Inverter & Smart Meter Support
Designed for system structures using solar panels, inverter, battery, home appliances, hybrid inverters, and smart meters.
Maintenance-Free Operation
Compared with lead-acid batteries, this LiFePO4 battery is maintenance-free and offers lower long-term usage cost.

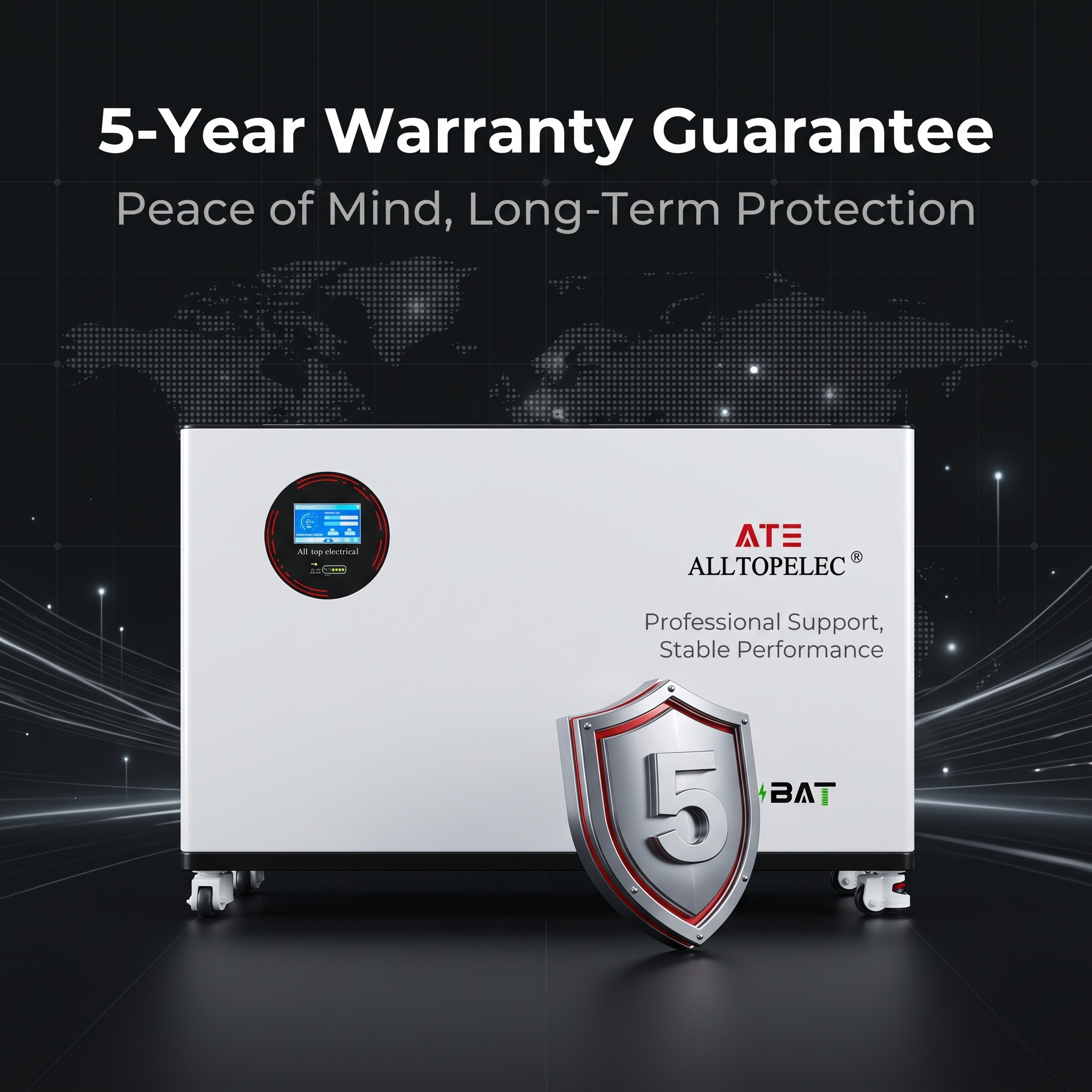

5-Year Warranty
Backed by a 5-year warranty, strict quality inspection, and global export experience.
| Category | Parameter | Specification |
|---|---|---|
| Battery System | Battery Type | LiFePO4 |
| Battery System | Nominal Voltage | 51.2V |
| Battery System | Capacity | 400Ah |
| Battery System | Energy | 20.48KWh |
| Battery System | Configuration | 16S 1P |
| Electrical Performance | Operating Voltage | 44V–58.4V |
| Electrical Performance | Charge / Discharge Current | 5A–100A |
| Electrical Performance | Max Discharge Current | 200A |
| Cycle Life | Cycle Life | 8000 cycles at 90% DOD |
| Operating Environment | Operating Temperature | Charge: 0~40°C / Discharge: -20~40°C |
| Physical Features | Weight | 150kg |
| Physical Features | Dimensions | 1090 × 654 × 181mm |
| Protection | Protection Level | IP54 |
| Communication | Communication | RS485 / CAN / RS232 / Bluetooth |

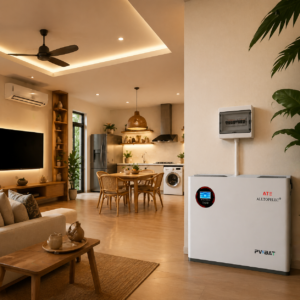

| Applications | Suitable Uses | Home energy storage systems, off-grid solar systems, RV / outdoor power supply, and small commercial backup power systems |
| System Connection | System Structure | Solar Panels → Inverter → Battery → Home Appliances |
| Monitoring | Remote Monitoring | Bluetooth connection, cloud platform monitoring, and mobile APP monitoring |
| Warranty | Warranty Period | 5 years |
Download the Product User Manual
Download the LiFePO4 51.2V battery user manual for installation guidance, system connection, battery operation, monitoring setup, safety notes, and maintenance reference.
