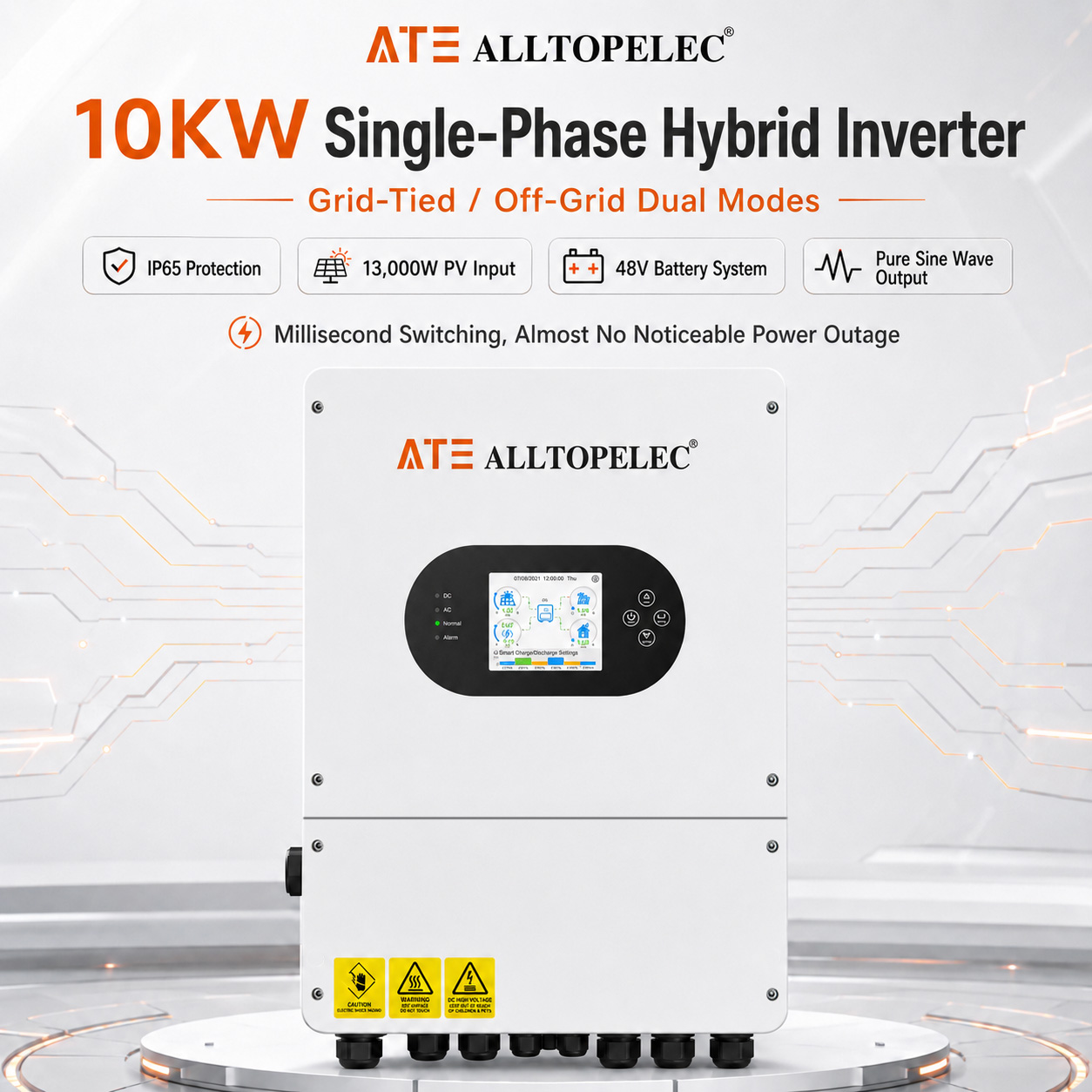

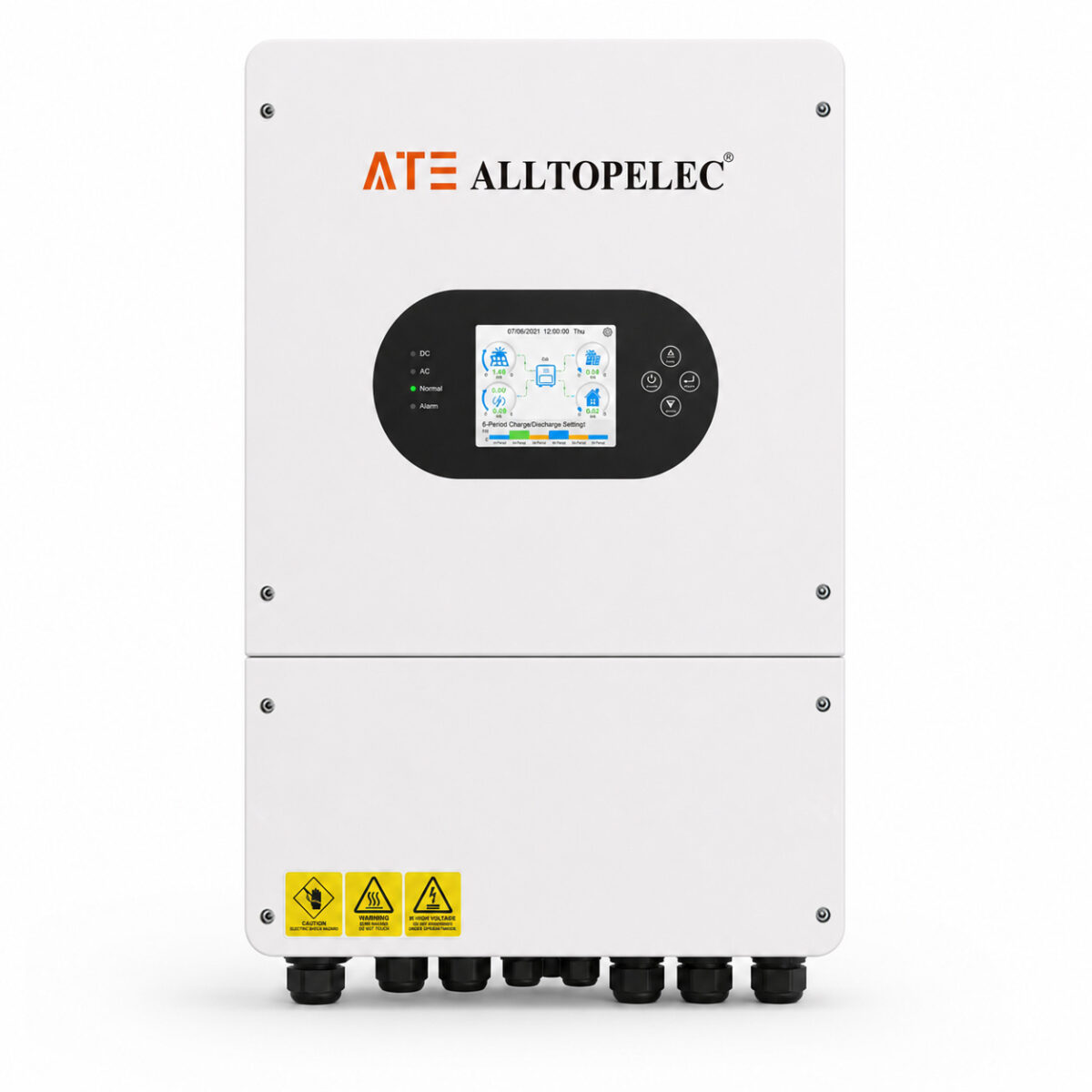

ALLTOPELEC 10kW energy storage Hybrid Inverter

A 10kW hybrid inverter designed for residential and small commercial energy storage applications, integrating solar power generation, battery storage, and AC power conversion in one compact solution. It supports 220/230Vac single-phase input and output, with a maximum apparent power of 11kVA and stable 50/60Hz operation.

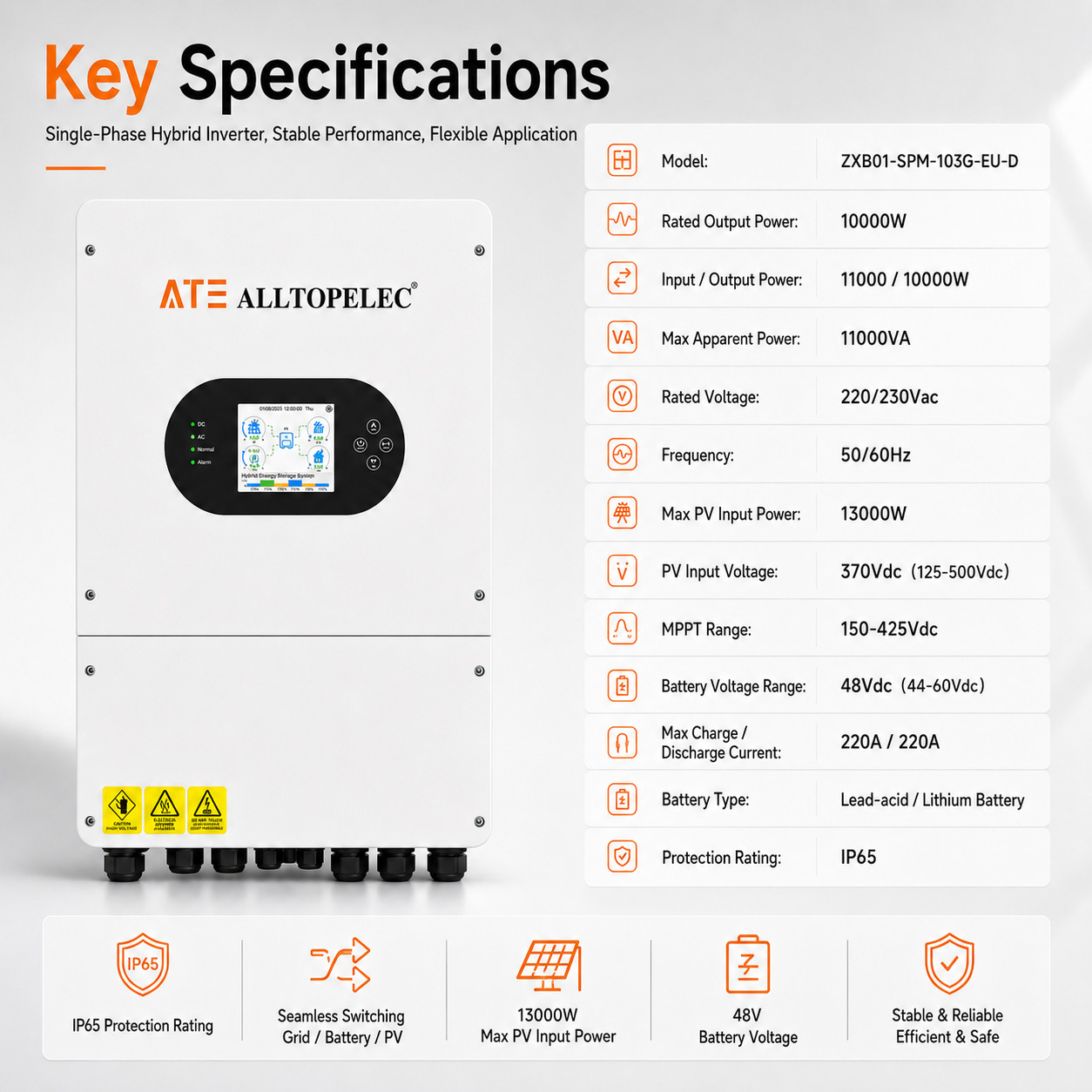

High PV Input Capacity:
Supports up to 13kW maximum PV input power, with a PV voltage range of 125–500Vdc and an MPPT operating range of 150–425Vdc, enabling flexible solar array configuration and efficient energy harvesting.

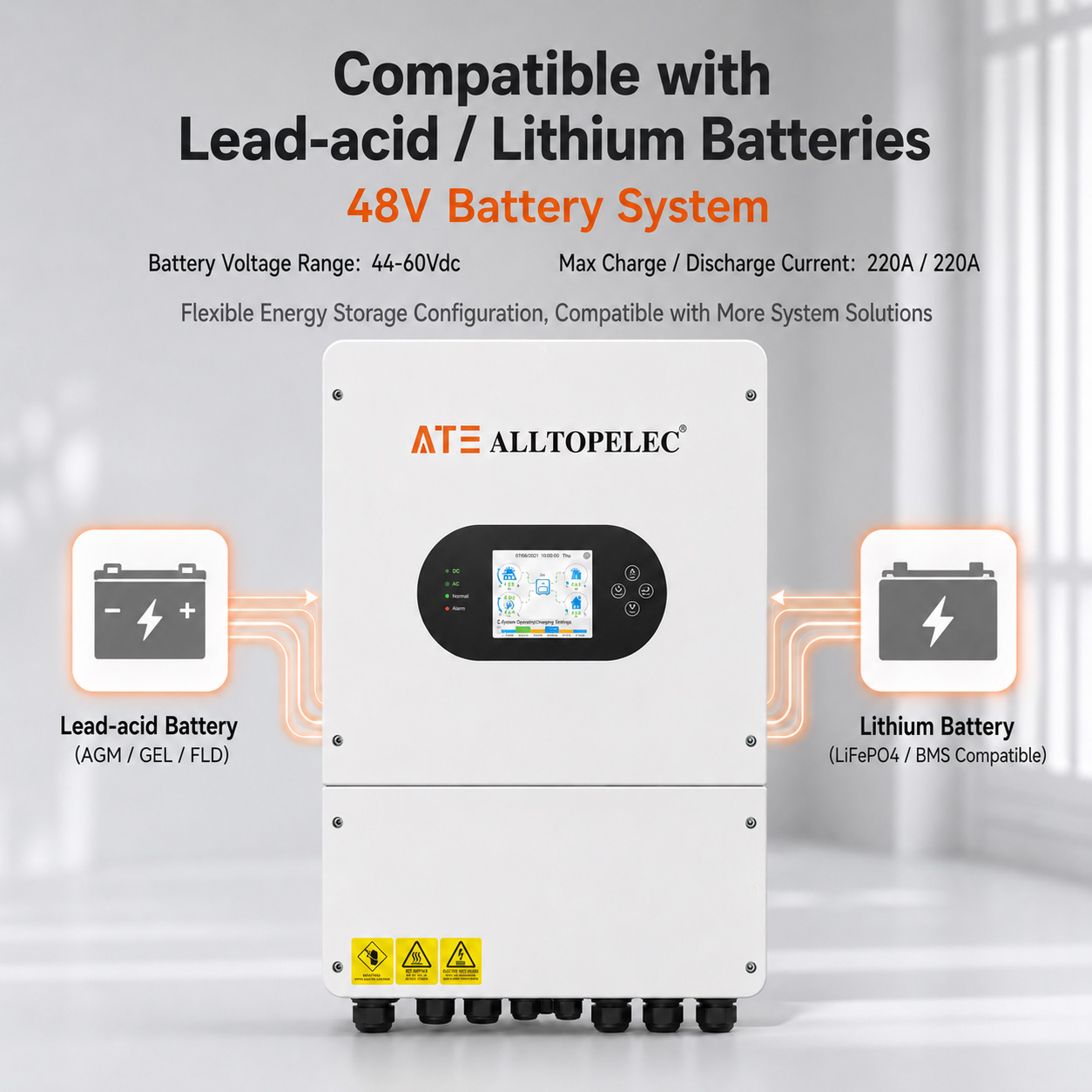

Flexible Battery Compatibility:
Works with 48V battery systems, covering a voltage range of 44–60Vdc. It supports both lead-acid and lithium-ion batteries, with maximum charging and discharging current up to 220A, meeting high-capacity energy storage requirements.

Reliable Backup Power Performance:
Provides 10kW nominal stand-alone AC output power with 220/230Vac output voltage and 43.5A rated output current, ensuring stable backup power for essential household or small commercial loads.

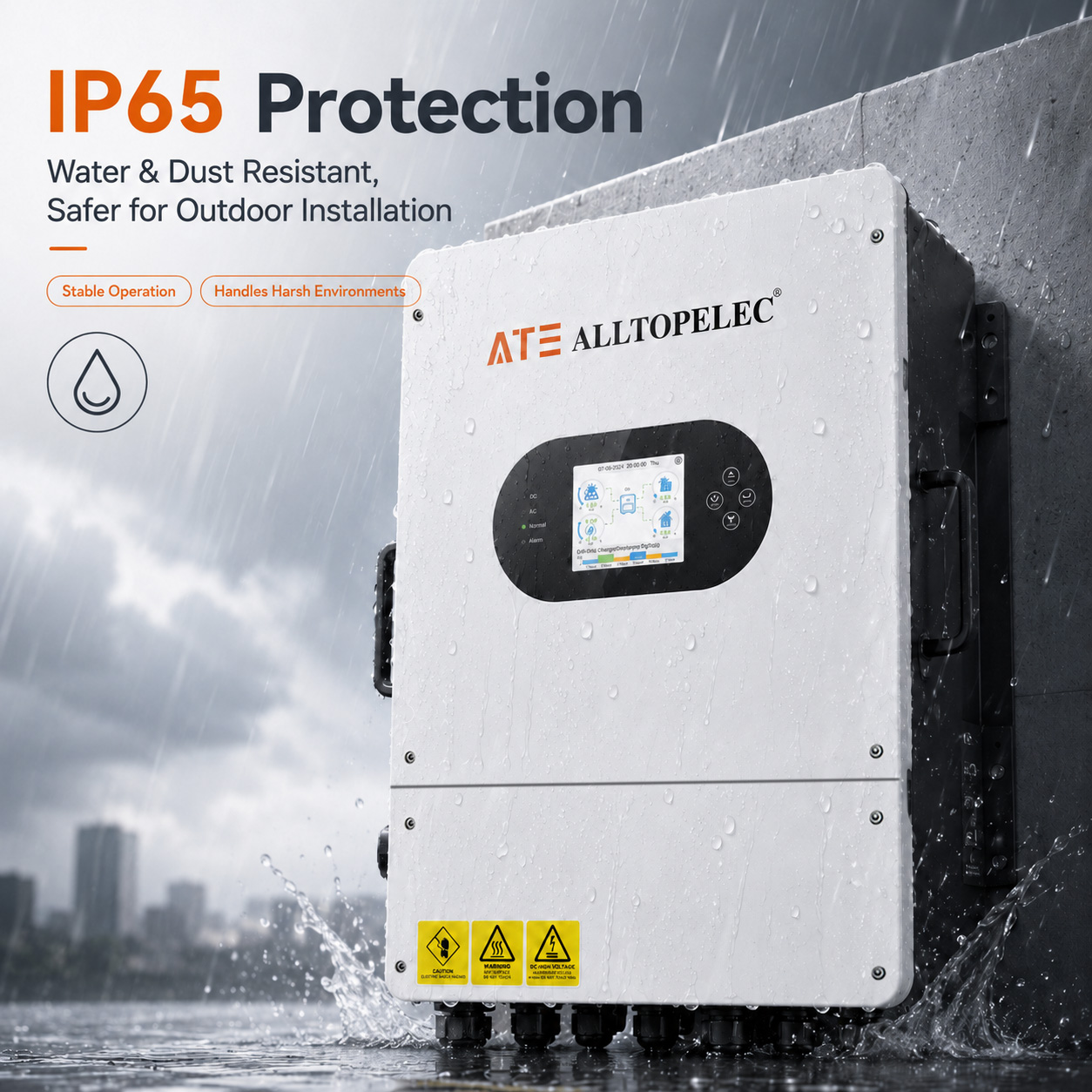

Outdoor-Ready Protection:

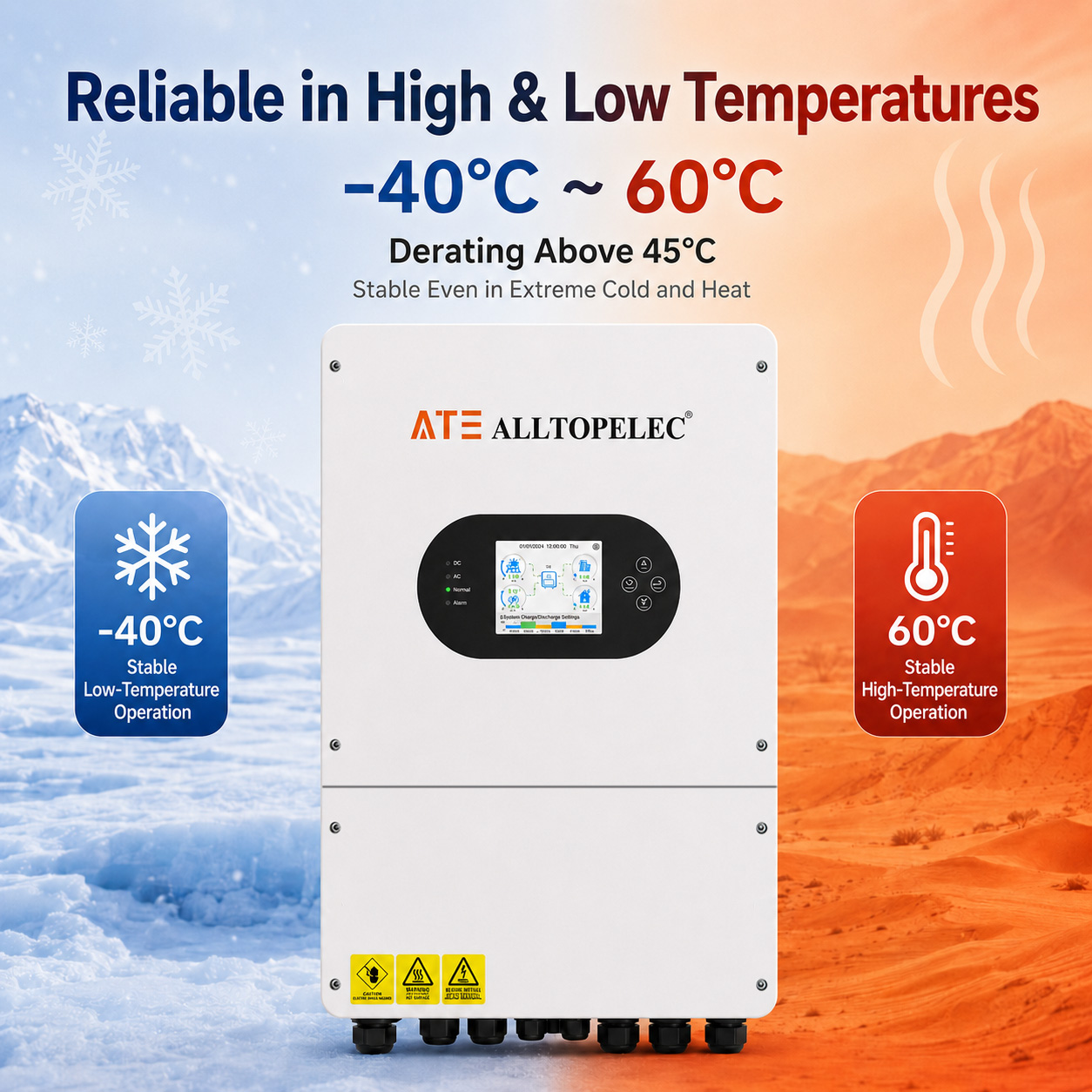

Built with IP65 protection, suitable for indoor and outdoor installation. With an operating temperature range from -40°C to +60°C and derating above 45°C, it delivers reliable performance under demanding environmental conditions.

Learn more

name

version

name

version

Clear

inquire

Warranty period of 5 years

Local warehouse direct delivery estimated delivery time 3-5 days

ALLTOPELEC 10kW Hybrid Energy Storage Inverter: The Flexible and Efficient Energy Storage Core

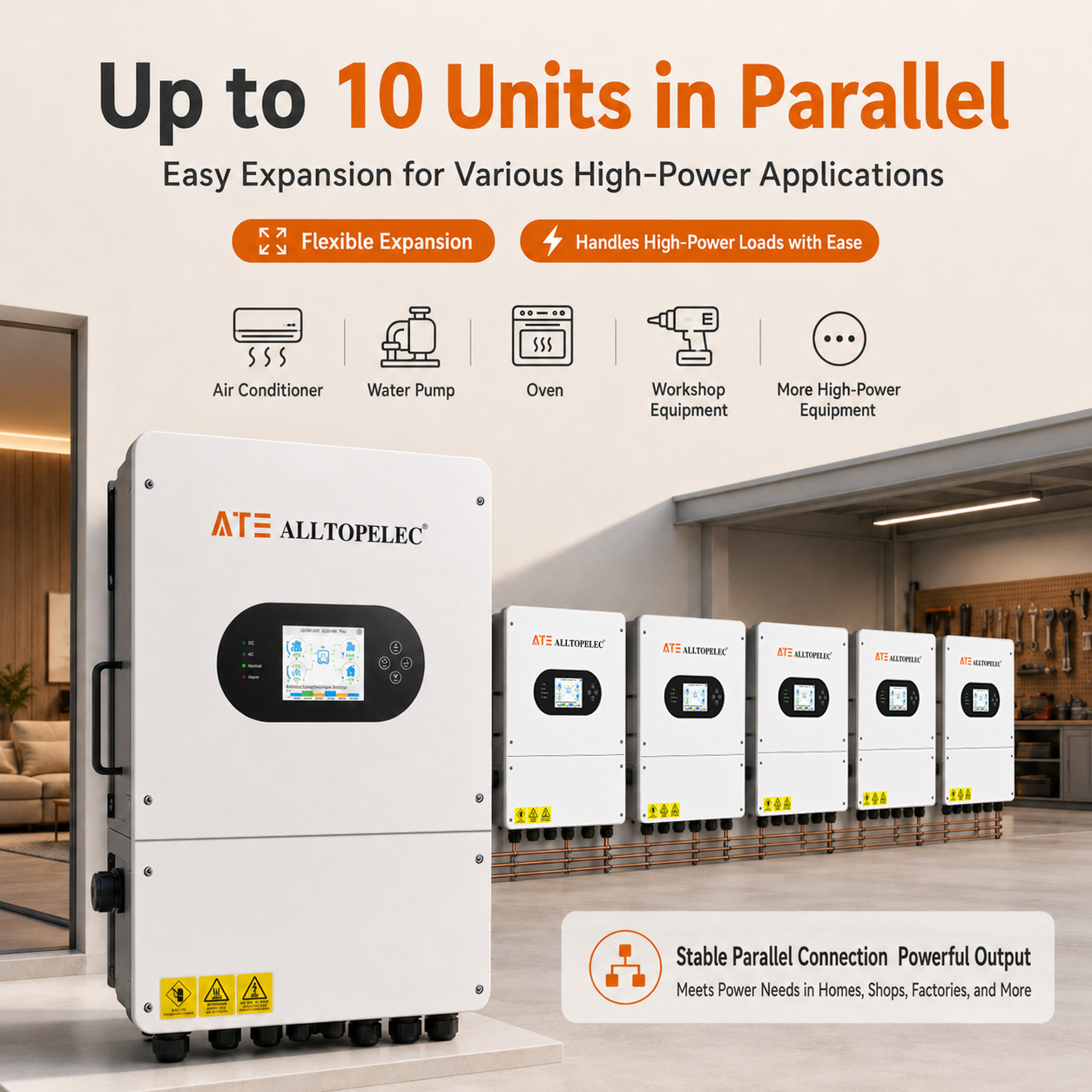

Flexible Power Expansion：Supports 6-10kW power configurations for household and small commercial use. Enables up to 10-unit parallel connection for 100kW+ system scaling. AC coupling allows seamless integration with existing PV systems.

High Efficiency & Smart Compatibility：97.6% peak efficiency with >99% MPPT efficiency. Supports 100% unbalanced output and auto-adapts to various battery BMS for intelligent management.

High-Current & High-Capacity Support：Compatible with 40-60V lead-acid/lithium batteries. 240A max charge/discharge current with multi-battery parallel support for expanded storage capacity.

Robust Protection & Reliability：IP65-rated for harsh environments, operates at -40°C to 60°C. Integrated DC switch, insulation monitoring, anti-islanding, and Type II surge protection ensure system safety.

Remote Monitoring & Control

Multiple interfaces (RS485/CAN, Wi-Fi/4G/Bluetooth) enable 24/7 remote monitoring and intelligent management.

Building a Full-Scenario Smart Power Consumption Center: Indoor Applications of the ATE ALLTOPELEC Energy Storage Inverter

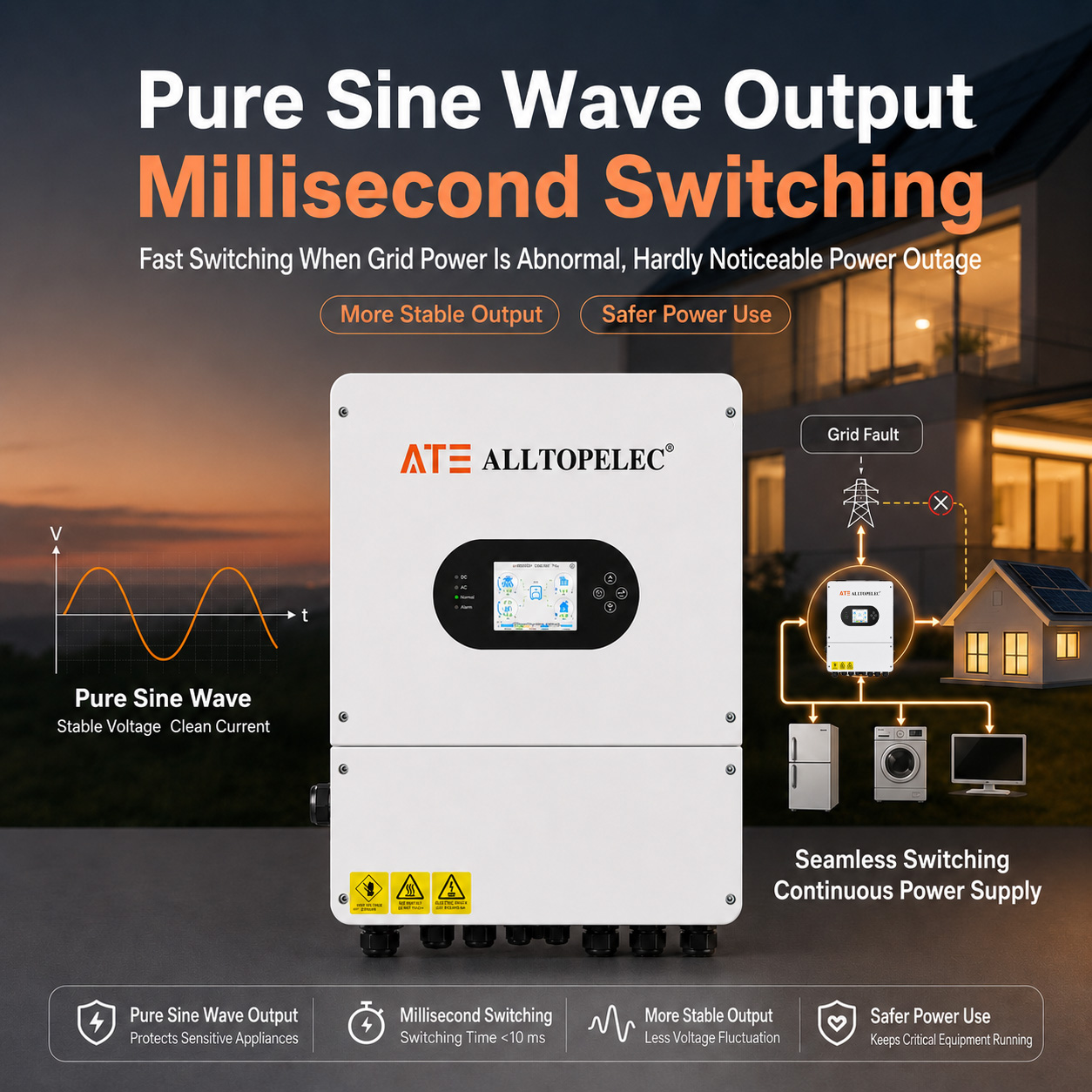

Backup Power: Millisecond-level switchover during grid power failures, supporting lithium/lead-acid batteries, continuously supplying critical loads (such as networks, lighting, refrigerators) to ensure uninterrupted living and business operations.

Smart Power Usage: Combined with a 6-stage charging/discharging strategy, it stores electricity during low-price off-peak hours and discharges for self-use during high-price peak hours, effectively saving on electricity costs. It supports 100% unbalanced output, enabling stable operation of loads like air conditioners and water pumps.

PV Companion: Through the AC coupling function, this device can be seamlessly integrated into existing photovoltaic systems, storing surplus electricity generated during the day for use at night or on cloudy days, significantly increasing the self-consumption rate. The multi-unit parallel function (up to 10 units) accommodates future power expansion needs.

Safe and Reliable: With an IP65 protection rating, it adapts to complex indoor environments (e.g., basements, garages). Integrated with multiple safety mechanisms such as insulation detection and anti-islanding protection, it operates with a noise level below 55dB, ensuring quiet and non-disruptive performance.

Intelligent Management and Control: Supports remote monitoring of system status and strategy configuration via multiple methods including Wi-Fi, 4G, and Bluetooth, enabling intelligent and visual energy management.

Innovative & Advanced

Built with next-generation LiFePO₄ technology to deliver smarter, safer, and more efficient energy storage solutions.

Energy Storage Hybrid Inverter

ATE ALLTOPELEC 10KW Energy Storage Hybrid Inverter

A smart energy storage hybrid inverter solution for solar power systems, battery storage systems, and home or small commercial backup power applications. Designed to work with solar panels, storage batteries, and grid power, it supports flexible energy management for daily self-consumption, emergency backup, and hybrid solar storage use.

The ATE ALLTOPELEC 6/10KW Storage Hybrid Inverter is built for residential and small commercial solar energy storage systems. It combines solar power conversion, battery energy storage, and grid interaction in one intelligent inverter system, helping users improve solar self-consumption and maintain backup power during grid interruptions.

The product is positioned as a energy storage inverter / hybrid inverter. Available site options include 6KW and 10KW versions, with Basic and Advanced configurations. It is suitable for power environments, solar panel systems, lithium battery energy storage systems, and backup power applications.

Energy Storage Design

Designed for solar energy storage systems used in residential and small commercial power applications.

Hybrid Solar System Integration

Works as part of a solar panel, battery, grid, and load system to support self-consumption and backup power use.

6KW / 10KW Model Options

Available site options include ALLTOPELEC Inverter 6KW and ALLTOPELEC Inverter 10KW versions.

Basic & Advanced Versions

Product option structure supports Basic and Advanced versions for different system configuration needs.

Solar + Battery + Grid Management

Supports an energy storage system structure where solar power charges batteries and supplies household or commercial loads.

Backup Power Application

When paired with an energy storage battery system, the inverter helps maintain power supply for important loads during outages.

Lithium Battery System Ready

Suitable for lithium battery energy storage systems, including LiFePO4 home storage battery applications.

Solar Self-Consumption

Helps store solar power during generation periods and use stored energy when solar production is low.

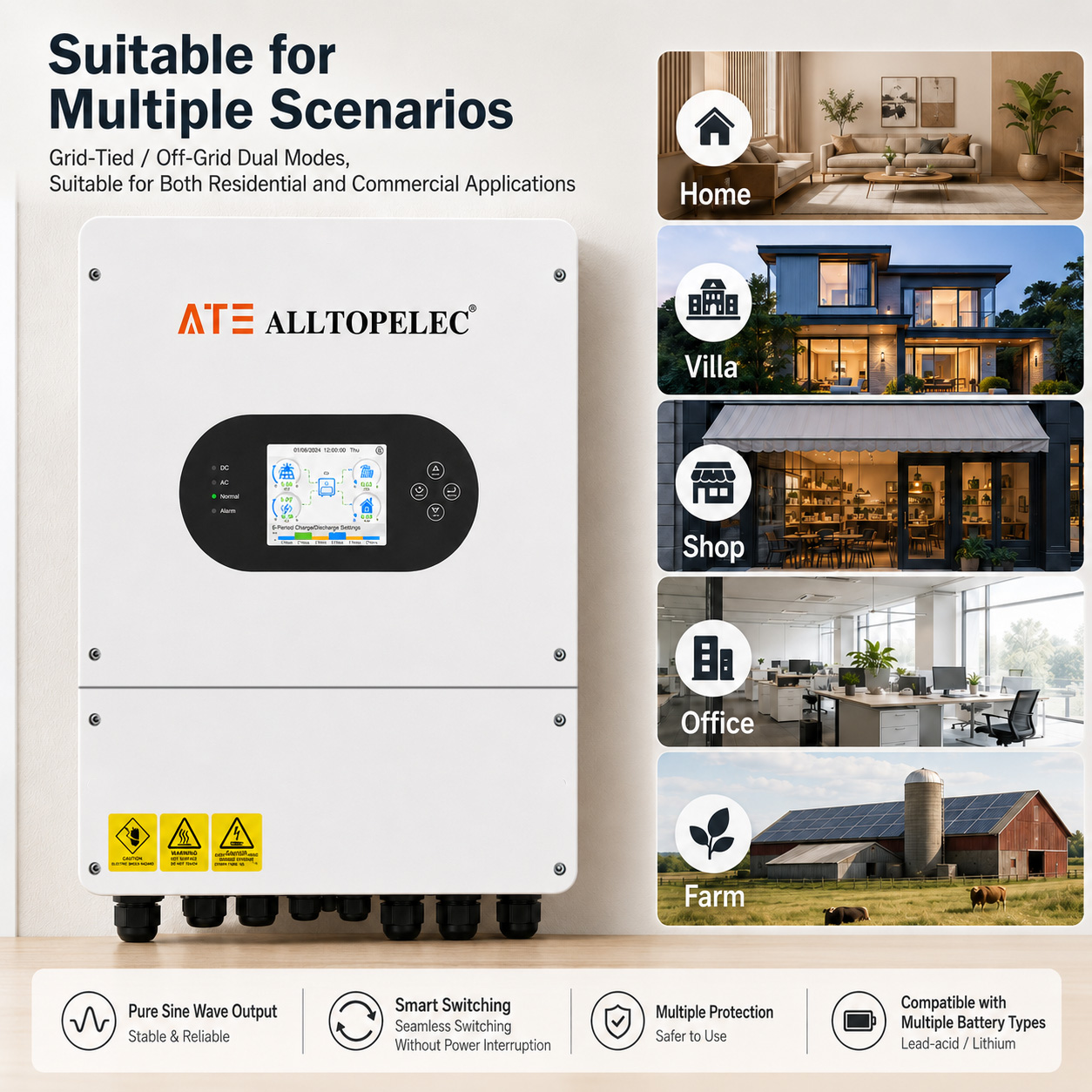

Home & Small Commercial Use

Designed for home energy storage, solar backup power, small commercial power systems, and hybrid solar applications.

Flexible Product Selection

Different power and version options allow users to choose a configuration that better matches household load demand.

Clean Energy Optimization

Supports improved use of solar power and reduced dependence on grid electricity in compatible solar storage systems.

ALLTOPELEC Energy System Pairing

Can be paired with ALLTOPELEC energy storage batteries for complete home or commercial solar storage solutions.

Category	Parameter	Specification
Product Information	Product Name	ATE ALLTOPELEC 6/10KW Energy Storage Hybrid Inverter
Product Information	Product Type	energy storage hybrid inverter
Power Options	Available Model Options	ALLTOPELEC Inverter 6KW / ALLTOPELEC Inverter 6/10KW
Version Options	Available Versions	Basic / Advanced
System Type	Application System	Solar energy storage system, hybrid power system, backup power system
Phase Type	AC System	single-phase
Energy Source	Solar Input	Supports solar PV system integration; confirm detailed PV input range before publishing
Battery Compatibility	Battery System	Designed for energy storage battery systems; confirm compatible battery voltage and BMS communication before publishing
Grid Function	Grid Connection	Suitable for grid-connected / hybrid storage applications; confirm local grid standard before publishing
Backup Function	Power Backup	Supports backup power use when paired with a compatible battery system
Recommended Use	Use Scenarios	Residential energy storage, solar self-consumption, emergency backup, small commercial power systems
Product Selection	Configuration	Choose power size and version according to load demand, battery capacity, and solar array size
Documentation	Datasheet / Manual	Replace with official inverter datasheet or manual link after upload
Installation	Installation Recommendation	Professional installation is recommended for inverter, battery, PV, and grid wiring

Download the Product User Manual

Download the inverter user manual for wiring guidance, battery communication settings, PV input configuration, grid connection, monitoring setup, safety notes, and maintenance reference.

Download Manual

Q1What is the ATE ALLTOPELEC 6/10KW Energy Storage Hybrid Inverter used for?

It is designed for solar energy storage systems, helping manage solar power, battery storage, grid power, and household or small commercial loads.

Q2Is this inverter suitable for power systems?

Yes. It is positioned as a energy storage inverter for solar storage applications.

Q3What power options are available?

The available site options show ALLTOPELEC Inverter 6KW and ALLTOPELEC Inverter 10KW. Please confirm the final 3–12KW range with the official datasheet before publishing detailed model data.

Q4What version options does the product have?

The product options include Basic and Advanced versions, allowing users to choose according to system requirements.

Q5Can this inverter work with solar panels?

Yes. It is intended for solar energy storage systems and can be used as part of a solar PV, battery, grid, and load system.

Q6Can this inverter work with energy storage batteries?

Yes. It is designed for energy storage applications and can be paired with compatible lithium battery systems. Battery voltage and communication compatibility should be confirmed before installation.

Q7Is it suitable for home backup power?

Yes. When paired with a compatible battery system, it can help supply backup power to important loads during grid interruptions.

Q8Can it help improve solar self-consumption?

Yes. In a solar storage system, the inverter helps direct solar energy to loads or batteries so users can make better use of generated solar power.

Q9Is this product suitable for small commercial systems?

Yes. It is suitable for residential and small commercial solar energy storage systems, depending on the required load, solar array size, and battery capacity.

Q10Does the inverter support grid-connected and off-grid use?

It is positioned for hybrid energy storage use. Final grid-connected, off-grid, and backup mode details should be checked against the official installation manual and local grid requirements.

Q11How should I choose between 6KW and 10KW?

Choose based on total load power, solar panel capacity, battery capacity, backup load requirements, and whether the system is for residential or small commercial use.

Q12Can it be used with ALLTOPELEC LiFePO4 batteries?

It is suitable for energy storage battery systems. Before installation, confirm the battery voltage, BMS communication protocol, and inverter compatibility list.

Q13Does this inverter require professional installation?

Yes. Professional installation is recommended because the system involves PV wiring, battery wiring, AC wiring, grid connection, protection devices, and local electrical code requirements.

Q14What should be confirmed before purchasing?

Confirm your grid standard, load power, PV input design, battery voltage, BMS communication protocol, backup load requirements, and whether you need the Basic or Advanced version.

Q15Where can users find detailed wiring and setup instructions?

Users should refer to the official inverter user manual or datasheet for wiring, commissioning, battery communication, PV configuration, grid settings, and safety requirements.
