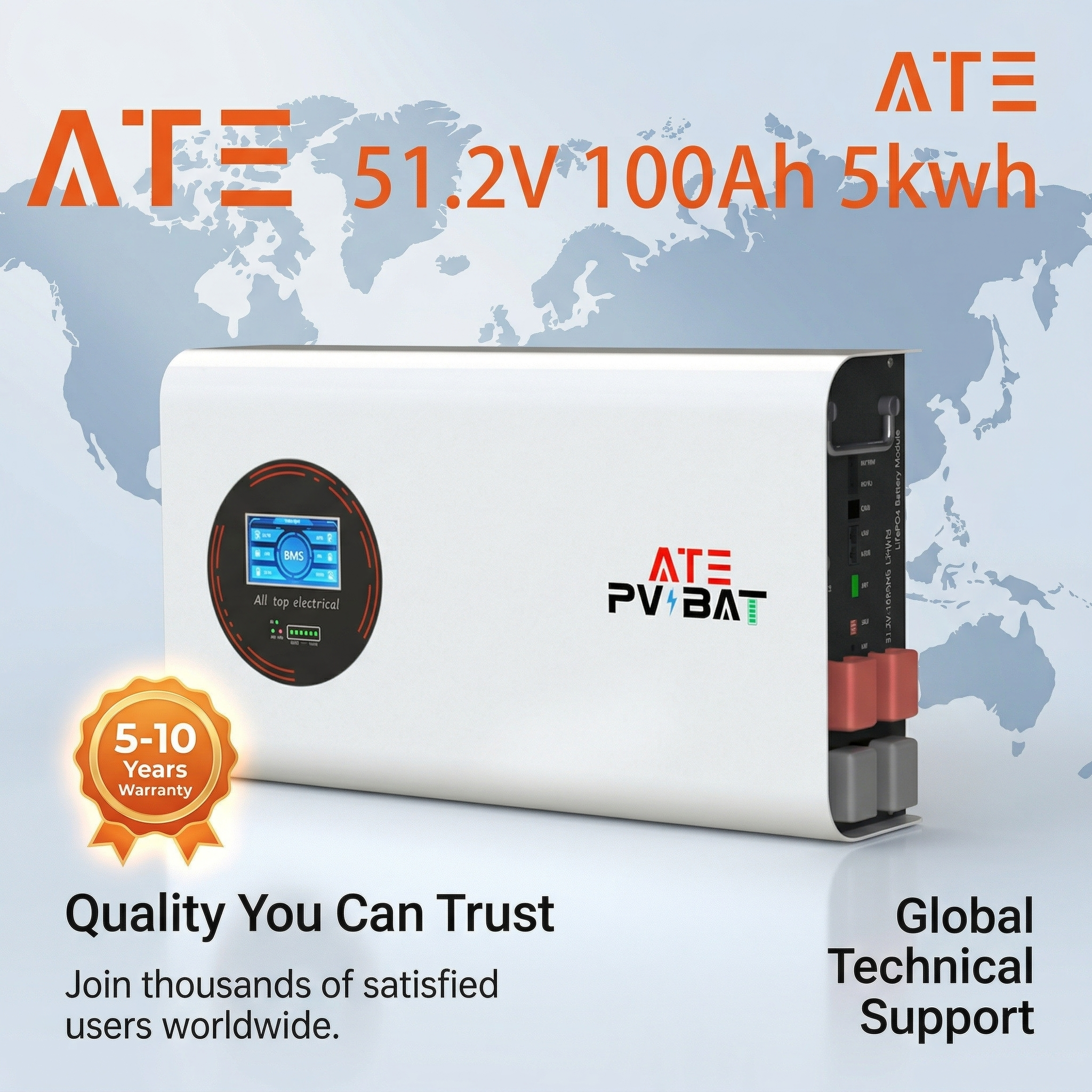

ATE ALLTOPELEC 5KWh LiFePO4 household energy storage battery
100Ah |
8000 cycles |
Smart BMS Protection |
Capacity |
Cycle Life |
BMS Type |
More Stable · Safer
Using LiFePO4 (Lithium Iron Phosphate) battery cells
High thermal stability, non-flammable and non-explosive
Built-in BMS intelligent protection system
Stronger Environmental Adaptability
Withstands up to 60°C high-temperature environments
Discharge temperature: -20°C ~ 40°C
Suitable for hot and humid regions (ideal for tropical climates)
🔌 Smarter · More Convenient
Supports Bluetooth connection + cloud platform monitoring
Real-time battery status and power tracking
Compatible with multiple inverters (RS485 / CAN communication)
Safe and Reliable, Extra-Long Lifespan, Smart Monitoring, Robust Adaptability
Featuring LFP material and smart BMS for top safety, with CATL EV-grade cells for 10,000+ cycles (5-year warranty).
Monitor and manage via Bluetooth/cloud/APP. Withstands 60℃, discharges from -20℃ to 40℃, IP54 rated—built for tough environments.
ALLTOPELEC Energy Storage Batteries feature a flexible installation design, suitable for diverse application scenarios.

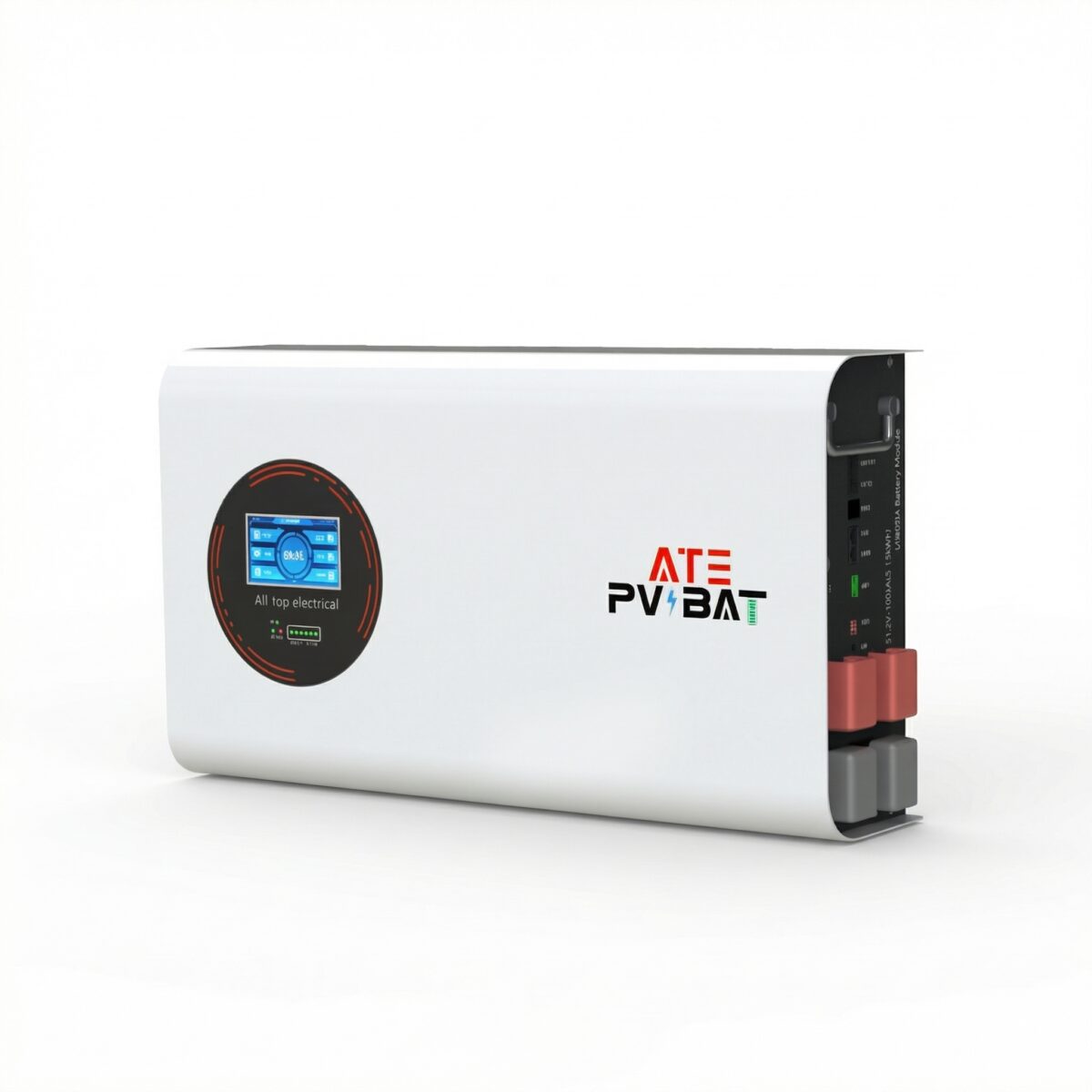

ATE ALLTOPELEC 5KWh LiFePO4 Household Energy Storage Battery
A compact, safe, and intelligent 5.12KWh LiFePO4 household energy storage battery with 51.2V nominal voltage, 100Ah capacity, Smart BMS protection, Bluetooth and cloud monitoring, IP54 protection, and flexible installation for home energy storage, off-grid solar systems, RV power, outdoor backup, and small commercial applications.
The ATE ALLTOPELEC 5KWh LiFePO4 Household Energy Storage Battery is designed for reliable residential and light commercial energy storage. With 51.2V nominal voltage, 100Ah capacity, and 5.12KWh energy, it provides dependable backup power for daily household electricity needs, off-grid solar systems, RV use, outdoor power supply, and small commercial backup systems.
This battery uses LiFePO4 lithium iron phosphate cells, offering strong thermal stability and safe operation. It features Smart BMS protection, Bluetooth connection, cloud platform monitoring, APP remote monitoring, RS485 / CAN / RS232 / Bluetooth communication, IP54 protection, and a long service life of 8000 cycles at 90% depth of discharge.
5.12KWh Household Energy Storage
Provides 5.12KWh energy with 51.2V nominal voltage and 100Ah capacity for home backup and solar storage systems.
LiFePO4 Battery Chemistry
Uses lithium iron phosphate cells with high thermal stability, safe performance, and long-term durability.
8000-Cycle Long Lifespan
Designed for 8000 cycles at 90% DOD, helping reduce long-term replacement and maintenance costs.
Smart BMS Protection
Built-in intelligent BMS protection system supports safer charging, discharging, and battery operation.
Bluetooth & Cloud Monitoring
Supports Bluetooth connection, cloud platform monitoring, and mobile APP remote monitoring for real-time battery tracking.
Multiple Communication Options
Supports RS485, CAN, RS232, and Bluetooth communication for inverter and system integration.
Compatible with Multiple Inverters
Designed for energy storage systems using RS485 / CAN communication, supporting flexible inverter compatibility.
IP54 Protection Level
IP54-rated protection supports more reliable operation in demanding home, outdoor, and commercial environments.
Compact 48kg Design
Compared with larger storage batteries, the 48kg body is easier to place and install for household systems.

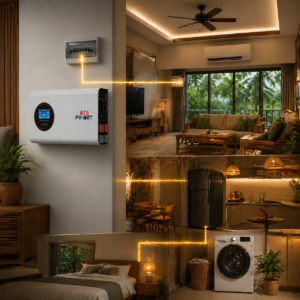

Flexible Installation
Supports wall or floor mounting to save space and fit residential or commercial energy storage scenarios.
Solar System Ready
Suitable for solar panel, inverter, battery, and home appliance connection structures.
5-Year Warranty
Backed by a 5-year warranty, strict quality inspection, and global export experience.
| Category | Parameter | Specification |
|---|---|---|
| Battery System | Battery Type | LiFePO4 |
| Battery System | Nominal Voltage | 51.2V |
| Battery System | Capacity | 100Ah |
| Battery System | Energy | 5.12KWh |
| Battery System | Configuration | 16S1P |
| Electrical Performance | Operating Voltage | 44V–58.4V |
| Electrical Performance | Charge / Discharge Current | 5A–100A |
| Electrical Performance | Max Discharge Current | 200A |
| Cycle Life | Cycle Life | 8000 cycles at 90% DOD |
| Operating Environment | Operating Temperature | Charge: 0~40°C / Discharge: -20~40°C |
| Physical Features | Weight | 48kg |
| Physical Features | Dimensions | 178 × 405 × 610mm |
| Protection | Protection Level | IP54 |
| Communication | Communication | RS485 / CAN / RS232 / Bluetooth |
| Applications | Suitable Uses | Home energy storage systems, off-grid solar systems, RV / outdoor power supply, and small commercial backup power systems |
| System Connection | System Structure | Solar Panels → Inverter → Battery → Home Appliances |
| Monitoring | Remote Monitoring | Bluetooth connection, cloud platform monitoring, and mobile APP remote monitoring |
| Warranty | Warranty Period | 5 years |
Download the Product User Manual
Download the LiFePO4 51.2V battery user manual for installation guidance, system connection, battery operation, monitoring setup, safety notes, and maintenance reference.
