ALLTOP RM-635W N-TOPCon High-Efficiency Monocrystalline N-Type Bifacial Double-Glass PV Module
Innovative & Advanced
Built with next-generation LiFePO₄ technology to deliver smarter, safer, and more efficient energy storage solutions.
Its durable double-glass design provides reliable performance and higher long-term energy yield.

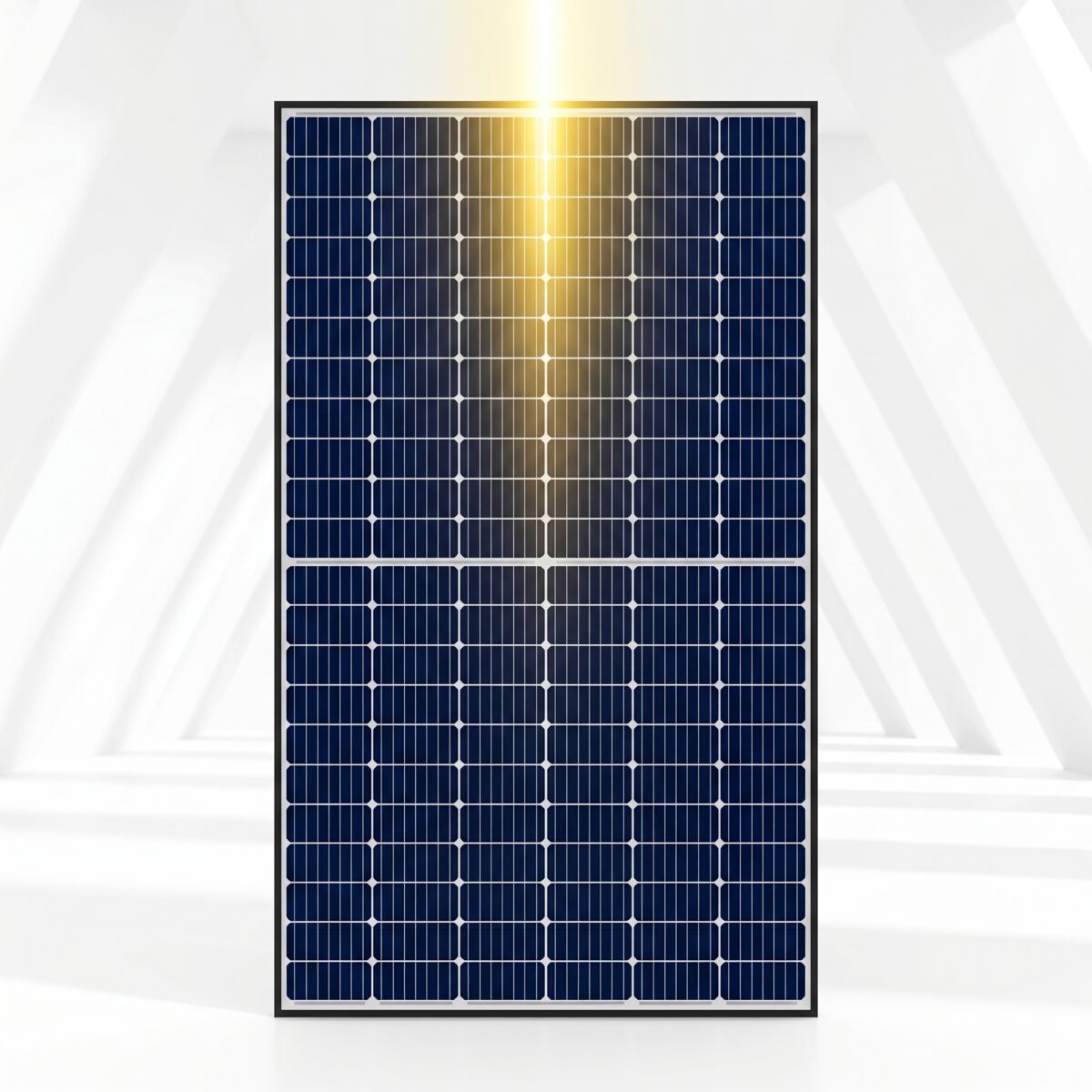

RM-635W N-TOPCon High-Efficiency Mono N-Type Bifacial Double Glass PV Module
The RM-635W N-TOPCon high-efficiency mono N-type bifacial double glass PV module delivers a 610W-635W power range and up to 23.50% module efficiency. Built with N-type TOPCon cells, 132 half-cut cells, bifacial power generation, double glass encapsulation, IP68 junction box, and 1500VDC system compatibility, it is designed for utility-scale solar plants, commercial and industrial rooftops, agrivoltaic projects, fishery-solar systems, and high-yield PV installations.
The RM-635W N-TOPCon high-efficiency mono N-type bifacial double glass PV module is a high-power solar panel designed for advanced photovoltaic systems. It uses N-type TOPCon cell technology to improve power output, low-light response, temperature performance, and long-term operating stability. The bifacial structure captures sunlight from both the front and rear sides, helping increase total energy yield in suitable installation environments.
This 635W solar module features 132 half-cut monocrystalline N-type cells, a 2382 — 1134 — 30mm module size, up to 23.50% conversion efficiency, and a robust double glass design. It is suitable for utility-scale PV power plants, commercial and industrial solar rooftops, high-albedo ground systems, agrivoltaic projects, fishery-solar projects, and single-axis or dual-axis tracker systems.
Up to 635W High Power Output
The 610W-635W power range helps increase installed capacity per module, reduce the number of panels required, and optimize BOS cost for large solar PV projects.
Up to 23.50% Module Efficiency
High module efficiency supports higher power density, making the panel suitable for space-sensitive commercial rooftops and utility-scale solar farms.
N-Type TOPCon Cell Technology
Mono N-type TOPCon cells deliver strong low-light response, improved temperature behavior, and stable output for high-performance photovoltaic systems.
Bifacial Energy Gain
The bifacial design allows the rear side to absorb reflected light from rooftops, ground surfaces, sand, water, or concrete, increasing total energy yield.
Double Glass Module Structure
Front and rear 2.0mm high-transmittance low-iron glass improve weather resistance, mechanical strength, and long-term outdoor reliability.
Excellent Low-Light Performance
The module maintains dependable output during morning, evening, cloudy, and low-irradiance conditions, helping improve daily energy generation.
Anti-PID Reliability
Optimized cell materials and encapsulation help reduce potential induced degradation and support stable PV system operation over time.
Multi-Busbar Cell Design
Multi-busbar technology improves current collection, reduces resistive loss, and helps reduce the impact of micro-cracks on module performance.
Strong Mechanical Load Capacity
The module supports 5400Pa front-side static load and 2400Pa rear-side static load for demanding wind, snow, and outdoor installation environments.
1500VDC System Compatible
A maximum system voltage of 1500VDC supports high-voltage string design for large PV power plants and helps reduce system electrical loss.
IP68 Junction Box & MC4 Compatible
The IP68 junction box and MC4-compatible connectors support reliable electrical connection and easy integration with mainstream solar system components.
Utility-Scale and C&I Ready
Designed for ground-mounted solar farms, commercial rooftops, agrivoltaic systems, fishery-solar projects, tracker systems, and high-albedo installations.
| Category | Parameter | Specification |
|---|---|---|
| Product Identification | Product Name | RM-635W N-TOPCon High-Efficiency Mono N-Type Bifacial Double Glass PV Module |
| Product Identification | Module Type | N-type TOPCon bifacial double glass solar module |
| Power Output | Maximum Power | 635W |
| Power Output | Power Range | 610W-635W |
| Power Output | Maximum Module Efficiency | 23.50% |
| Cell Technology | Cell Type | Monocrystalline N-type cell |
| Cell Technology | Cell Technology | N-TOPCon |
| Cell Technology | Cell Size | 182mm — 105mm |
| Cell Technology | Cell Quantity | 132 cells, 6 — 11 + 6 — 11 layout |
| Module Design | Module Structure | Bifacial double glass |
| Module Design | Module Dimensions | 2382 — 1134 — 30mm |
| Module Design | Module Weight | 33.5kg |
| Mechanical Materials | Front Glass | 2.0mm high-transmittance low-iron semi-tempered coated glass |
| Mechanical Materials | Rear Glass | 2.0mm high-transmittance low-iron glass |
| Mechanical Materials | Frame | Anodized aluminum alloy frame |
| Electrical System | Junction Box | IP68, 1500VDC |
| Electrical System | Connector | MC4 compatible connector |
| Electrical System | Cable | 4.0mm ² / 12AWG, positive 300mm and negative 200mm |
| Electrical System | Maximum System Voltage | 1500VDC |
| Electrical System | Maximum Reverse Current | 30A |
| Operating Conditions | Operating Temperature | -40 °C to +85 °C |
| Temperature Ratings | NMOT | 45 °C ± 2 °C |
| Temperature Ratings | Pmax Temperature Coefficient | -0.29%/ °C |
| Temperature Ratings | Voc Temperature Coefficient | -0.24%/ °C |
| Temperature Ratings | Isc Temperature Coefficient | +0.04%/ °C |
| STC Electrical Data | 635W Model | Pmax 635W, Voc 50.60V, Isc 15.95A, Vmpp 42.30V, Impp 15.02A |
| Bifacial Power Gain | 5% Rear-Side Gain | Approx. 661W equivalent output for the 635W module |
| Bifacial Power Gain | 10% Rear-Side Gain | Approx. 693W equivalent output for the 635W module |
| Mechanical Load | Static Load Capacity | 5400Pa front-side snow load and 2400Pa rear-side wind load |
| Packaging | Container Loading | 40ft HQ: 740 modules, 37 modules per pallet, 20 pallets |
| Applications | Recommended Uses | Utility-scale solar power plants, C&I rooftops, agrivoltaics, fishery-solar systems, bifacial PV systems, and tracker projects |
Download the RM-635W Product Datasheet
Download the RM-635W N-TOPCon bifacial double glass PV module datasheet for electrical characteristics, mechanical specifications, temperature ratings, bifacial power gain, packaging data, and solar project reference.
